PCB Copper Thickness: Charts, IPC Standards, Tolerance and Current Guide

PCB copper thickness is the depth of the copper layer on a printed circuit board, and it is usually specified as a weight in ounces per square foot. The quick answer most engineers need is this: 1 oz of copper is about 34.8 µm, which is 0.035 mm or 1.37 mil.

That single number hides a lot of detail. The copper you order is not the copper you receive, inner layers lose copper during processing, outer layers gain copper from plating, and the IPC standards publish slightly different values than the common rule of thumb.

This guide covers all of it. You will find a full conversion chart, the IPC 4562 and IPC 6012 values, real tolerance rules, worked current examples, flex copper choices and the methods fabricators use to measure copper. If you are also choosing the overall board thickness, read our PCB thickness guide alongside this one.

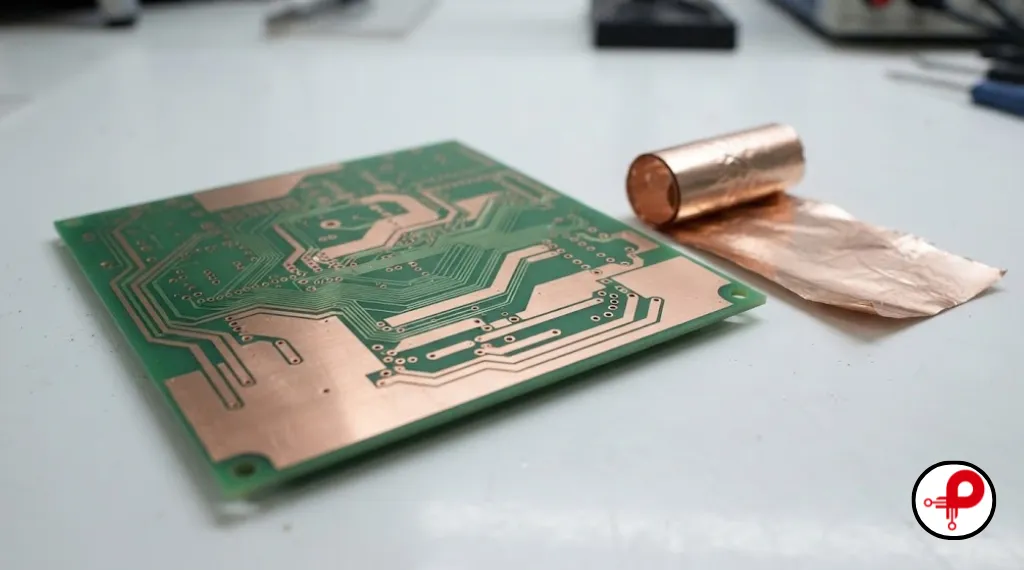

What Is PCB Copper Thickness?

PCB copper thickness describes how much copper sits on each conductive layer of the board. That copper forms your traces, pads, planes and the plating inside holes.

Thickness controls three things at once. It sets how much current a trace can carry, how well the board spreads heat, and how fine your traces and gaps can be. Choosing it is therefore an electrical, thermal and manufacturing decision all at the same time.

Copper Weight vs Copper Thickness

Fabricators rarely talk about copper in microns. They talk about copper weight, such as 0.5 oz, 1 oz or 2 oz.

Copper weight is the mass of copper spread evenly over one square foot of board. Because copper has a fixed density, every weight converts to a fixed thickness. One ounce spread over one square foot gives roughly 1.37 mil of copper.

So “1 oz copper” and “35 µm copper” describe the same layer. The first is the purchasing language, and the second is the engineering language.

Why PCB Copper Thickness Is Measured in Ounces

The ounce convention comes from how copper foil has always been made and sold. Foil producers weigh a known area of foil, and that is more accurate than measuring a rough, treated surface with a contact gauge.

Bill Hargin of Siemens makes exactly this point in his article Copper thickness: closing the knowledge gap, noting that the unit called “ounces” is really ounces per square foot. Once you understand that, the conversions in the next section make perfect sense.

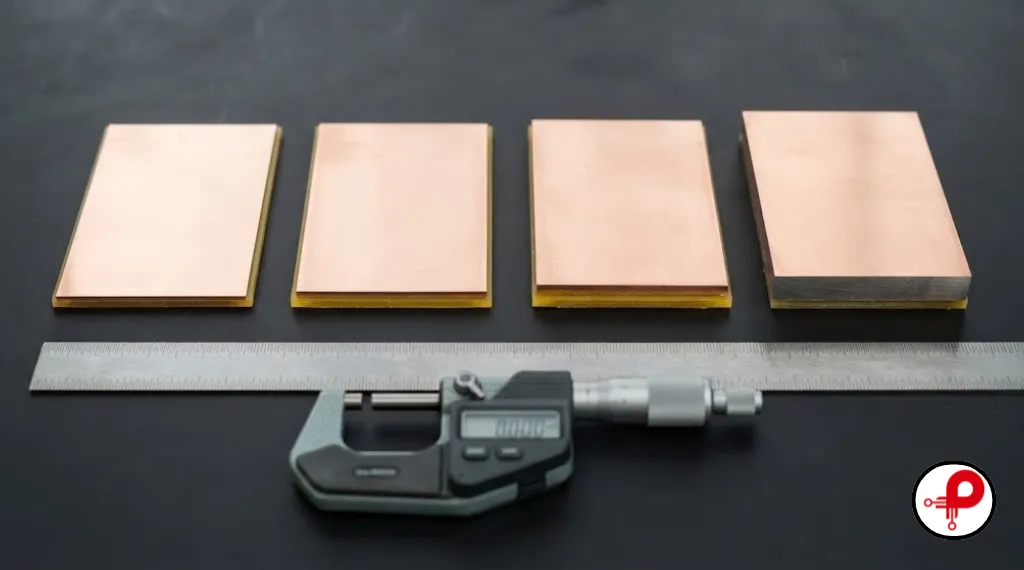

PCB Copper Thickness Chart: oz to µm, mm and mil

Here is the PCB copper thickness chart most designers keep open while building a stackup. It shows two conventions side by side, because both appear in datasheets and fabricator documents.

The first columns use the common mass density method, where 1 oz equals 1.37 mil. The last columns use the nominal values from IPC 4562, the IPC standard for metal foil used in printed boards.

Values marked “calculated” come straight from the published conversion factors rather than a printed table. The mass density values match the chart published by PCB Prime.

PCB Copper Thickness in mm

To convert copper weight to millimetres, multiply the weight in ounces by 0.0348. A 2 oz layer is therefore 0.0696 mm, and a 3 oz layer is about 0.104 mm.

Most designers round 1 oz to 0.035 mm. That rounding is fine for most layout work, but use the exact stackup values from your fabricator when you calculate impedance.

PCB Copper Thickness in Microns

For microns, multiply the weight in ounces by 34.8. This gives 17.4 µm for half ounce copper and 69.6 µm for 2 oz copper.

Microns are the unit you will see in IPC tables and on microsection reports, so it helps to think in µm when you check a finished board against a specification.

IPC 4562 Nominal Values vs the 1.37 mil Rule

Here is the detail most guides skip. IPC 4562A lists 1 oz foil at a nominal 1.35 mil, which is 34.3 µm, while the familiar rule of thumb says 1.37 mil, or 34.8 µm.

The difference is small, about 1.5%, but it matters when you are checking a board against a contract specification. UPA’s copper thickness guide points out the same gap and warns that tolerances can shift actual thickness by 10% or more. For specifications, quote the IPC value. For quick layout estimates, the 1.37 mil rule is perfectly adequate.

1 oz PCB Copper Thickness Explained

The 1 oz PCB copper thickness is the industry default. Unless you ask for something else, most fabricators will build your outer layers with 1 oz finished copper.

In real terms, 1 oz copper is about 35 µm thick, which is roughly half the thickness of a human hair. It suits signal routing, moderate power traces and most general purpose boards.

1 oz vs 2 oz vs 3 oz Copper

Doubling the PCB copper thickness doubles the cross section of every trace, but it does not double the current. Here is how the three most common weights compare.

The spacing figures come from published fabricator capability charts, including PCB Universe and PCB Prime. Always confirm against your own fabricator’s rules.

When 0.5 oz Copper Makes Sense

Half ounce copper is common on inner layers and as the starting foil for outer layers. Plating then builds outer layers up to roughly 1 oz finished.

Choose 0.5 oz when you need very fine traces, tight impedance control on thin dielectrics, or dense routing such as BGA breakout on an HDI PCB. Thinner copper etches more precisely, which helps fine geometry.

PCB Copper Thickness Standards and Tolerance (IPC 4562 and IPC 6012)

Two IPC standards govern PCB copper thickness, and they answer different questions. IPC 4562 covers the copper foil before the board is made. IPC 6012 covers what the finished rigid board must contain after fabrication.

Mixing up these two is the most common source of copper disputes between designers and fabricators.

Base Copper vs Finished Copper

Base copper is the foil laminated onto the board at the start. Finished copper is what remains on the final product after etching, cleaning and plating.

Inner layers are never plated, so they usually finish thinner than the starting foil. Outer layers receive copper plating to build up the hole walls, so they usually finish thicker than the starting foil.

Inner Layer PCB Copper Thickness After Processing

IPC 6012 sets minimum finished copper values for each layer type. The table below summarizes those minimums, as published by NCAB Group, which references the inner and outer layer tables of IPC 6012.

Notice the inner layer value for 1 oz copper. A board that started with 34.3 µm of foil may legally finish with only 24.9 µm on an inner layer. If your current calculation assumed 35 µm, your trace will run hotter than you expected.

Outer Layer Copper and Plating (Class 2 vs Class 3)

Outer layer minimums are higher because they include plating. According to IConnect007’s explanation of finished copper, the outer value combines the minimum foil, an average plating thickness of 20 µm for Class 2 or 25 µm for Class 3, and a processing allowance.

That 5 µm plating difference is why Class 3 boards for aerospace, medical and other high reliability products show higher outer layer minimums.

How to Specify Copper on Your Fabrication Drawing

Be explicit about the PCB copper thickness you mean. Write “starting copper 1 oz” or “finished copper 35 µm minimum”, never just “1 oz copper”.

This matters a lot on inner layers. If your drawing demands 35 µm minimum finished copper on an inner layer, the fabricator must start with 2 oz foil, which changes cost, etching limits and your stackup thickness. Our guide to circuit board design rules covers how to write clean fabrication notes.

PCB Copper Thickness Tolerance

PCB copper thickness tolerance describes how far the real copper can differ from the nominal value. Very few online guides quote a standard here, so this section separates what the standard says from what fabricators claim.

Foil Tolerance per IPC 4562

IPC 4562A allows incoming copper foil to be up to 10% below its nominal thickness. For 1 oz foil, that means the laminate can arrive with only 30.9 µm (1.22 mil) of copper and still meet the standard.

IConnect007 explains that after processing, the minimum finished value for that same 1 oz inner layer can drop to 24.9 µm under IPC 6012. That is roughly 28% below the 34.8 µm rule of thumb.

Typical Fabricator Tolerances

Many fabricators publish their own tolerance figures. These are useful guides, but they are company claims rather than standard requirements.

For design margin, assume the IPC minimum PCB copper thickness, not the nominal value. That simple habit prevents most copper related field failures.

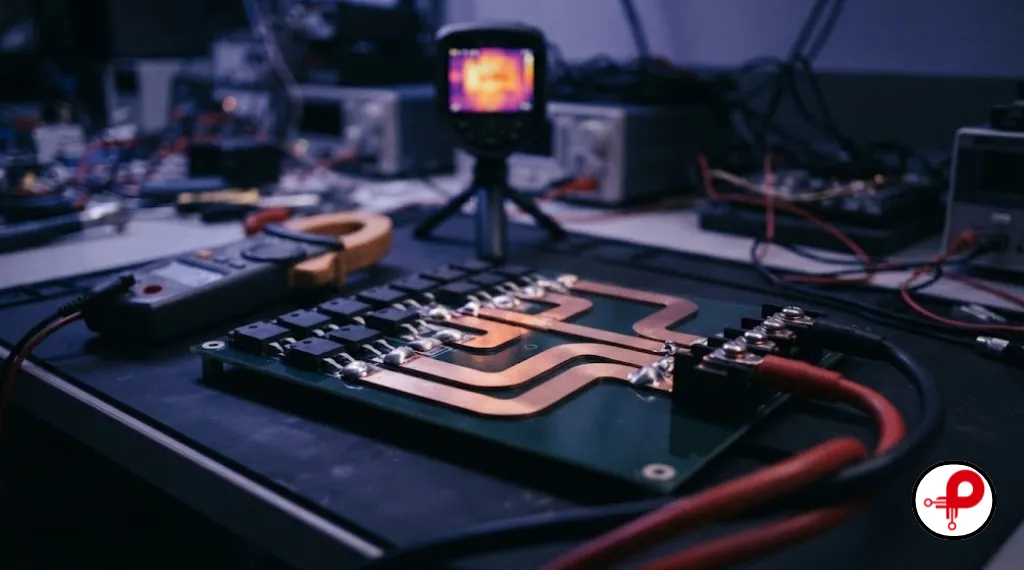

PCB Copper Thickness vs Current Capacity

The most practical reason to care about PCB copper thickness is current. A thicker layer gives a larger cross section, which carries more current for the same temperature rise.

The relationship is not linear, though, and the standards that describe it have changed over time.

The IPC 2221 Formula

The classic formula from IPC 2221 estimates current from trace cross section and temperature rise:

I = k × ΔT^0.44 × A^0.725

Here, I is current in amps, ΔT is temperature rise in °C, A is cross section area in square mils, and k is 0.048 for external traces or 0.024 for internal traces.

The table below uses this formula for external traces with a 10 °C rise. Treat these values as estimates for early planning.

Two lessons stand out. Internal traces carry roughly half the current of external traces at the same size, because heat escapes less easily. Also, doubling copper weight raises current by about 1.65 times, not 2 times, because of the 0.725 exponent in the formula.

What IPC 2152 Changed

IPC 2152, published in 2009, replaced the old charts with new test data. Michael Jouppi, who led the work, describes the method in his IPC 2152 technical paper.

The baseline IPC 2152 chart is conservative because it assumes a board with no copper planes. Modifiers for board thickness, nearby planes and thermal conductivity usually allow a narrower trace than the baseline suggests.

Worked Example: Sizing a 10 A Trace

Jack Olson’s practical guide, Determining Circuit Board Current Carrying Capability, walks through a useful example. He sizes an external 1 oz trace for 10 A with a 20 °C rise.

The conservative IPC 2152 chart calls for about 530 mil of trace width. After applying the modifiers for a real board with planes, the required width drops to about 180 mil. The older historical chart had suggested about 250 mil.

The lesson is simple. The same current can need very different widths depending on the method and the board around the trace.

Using a PCB Copper Thickness Calculator

For final sizing, use a calculator rather than a printed table. Our own PCB track width calculator and trace width calculator let you enter copper weight, current and temperature rise directly.

For a calculator based on IPC 2152, the Sierra Circuits trace width and current capacity tool is a good cross check. If current also flows through vias, check them with our via current capacity calculator, and leave margin using our component derating guidelines.

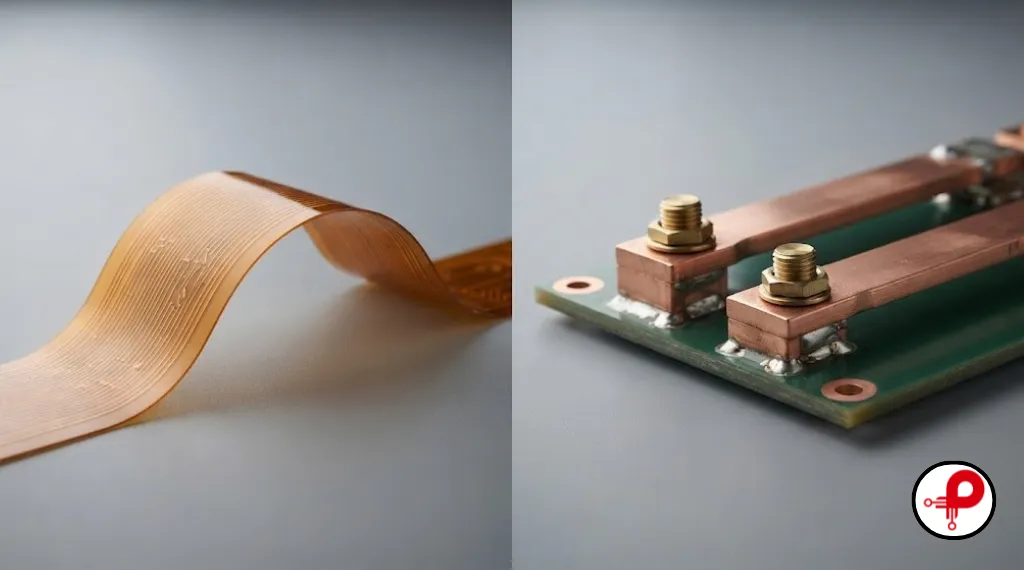

Flex and Heavy PCB Copper Thickness

Some boards need copper that bends, and others need copper that carries very large currents. Both cases change the rules for PCB copper thickness.

Flex PCB Copper Thickness

Flex PCB copper thickness follows a different logic than rigid boards. In a flex circuit, copper must survive bending, so thinner copper is often the better choice.

1/3 oz, 1/2 oz and 1 oz in Flex Circuits

Three weights cover most flex designs:

These options match the standard flex process offered by large fabricators, as described in the JLCPCB flex PCB guide. If you are still deciding between board types, see our comparison of flex PCB vs rigid PCB.

Rolled Annealed vs Electrodeposited Copper

Flex copper comes in two forms. Rolled annealed (RA) copper is made by rolling copper into foil and then heat treating it, which gives it long, horizontal grains. Electrodeposited (ED) copper is plated onto a drum, which gives it vertical grains.

That grain structure matters. Sierra Circuits reports elongation of 20 to 45% for rolled copper versus 4 to 40% for electrodeposited copper. In line with IPC 2223 guidance, use RA copper in areas that bend repeatedly and ED copper in static areas where cost matters more.

Heavy Copper PCBs (3 oz and Above)

There is no formal IPC definition of heavy copper. The common industry convention treats any board with 3 oz (about 105 µm) or more on an inner or outer layer as heavy copper. Boards with 20 oz or more are often called extreme copper.

Heavy copper suits power supplies, motor controllers, battery systems and automotive power distribution. It carries large currents, survives thermal cycling well and spreads heat away from hot parts.

The tradeoffs of a large PCB copper thickness are real. Thick copper needs wider spacing, longer etching and careful lamination, which raises cost and lead time. It also makes soldering harder, so use thermal relief design rules on pads that connect to large copper areas. For power layout examples, see our DC DC converter PCB layout guide.

PCB Copper Thickness Measurement Methods

PCB copper thickness measurement confirms that the board you received matches what you ordered. Fabricators and test labs use several methods, each with its own strengths.

Microsection Analysis

Microsection is the reference method. A test coupon is cut, mounted in resin, polished and measured under a microscope.

It shows the true copper thickness on every layer and inside the holes. Because it destroys the sample, fabricators run it on coupons from the production panel rather than on your actual boards.

Eddy Current and Micro Resistance Gauges

These handheld gauges measure copper without damaging the board. Eddy current gauges suit flat copper surfaces, while micro resistance gauges use four probes and can also measure copper inside plated holes.

Hitachi High Tech lists gauges such as the CMI760, which covers surface copper from 0.25 to 254 µm and through hole copper from 1 to 102 µm. These tools are what most people mean by a PCB copper thickness gauge or tester.

XRF Testers

XRF is mainly used for thin surface finishes such as ENIG gold and nickel, immersion silver and tin. It is less suited to thick copper layers, where electromagnetic gauges are faster.

Choosing a PCB Copper Thickness Gauge

For incoming inspection, a micro resistance gauge offers the best balance, because it checks both surface and hole copper. For dispute resolution, ask your fabricator for microsection reports on the coupons. Building test coupons into your panel from the start is good practice, as our design for testability guide explains.

How to Choose the Right PCB Copper Thickness

Choosing PCB copper thickness is a balance between current, heat, fine geometry and cost. Work through these factors in order.

Cost and Lead Time

Standard copper weights are cheapest and fastest. Most fabricators build outer layers with 1 oz or 2 oz finished copper and inner layers with 0.5 oz or 1 oz as standard options.

Heavier copper usually means a separate quote, longer etching and a higher price. If only a few power nets need extra copper, a wider trace on standard copper is often cheaper than upgrading the whole layer.

Fine Pitch and Etching Limits

A greater PCB copper thickness etches with more undercut, so it needs wider gaps between conductors. The table below shows typical minimum trace and space values by copper weight.

These values reflect published capability data from fabricators such as PCB Prime and JLCPCB. Your own fabricator’s rules always take priority. For more layout guidance, read our PCB layout best practices.

Impedance and Thermal Performance

Copper thickness is part of every impedance calculation. Many designers assume 35 µm when the real finished value is different, and that error shifts impedance. Use the stackup values your fabricator supplies, and check them with our microstrip impedance calculator and our signal integrity PCB design guide.

For heat, thicker copper and solid planes spread energy away from hot components. If thermal performance drives your design, our thermal management PCB design guide shows how copper works together with vias and planes.

Key Takeaways

PCB copper thickness looks simple until you need it to be right. Remember the core numbers: 1 oz is about 35 µm, inner layers finish thinner than their starting foil, outer layers finish thicker because of plating, and doubling copper gives about 1.65 times the current, not twice.

Specify finished copper clearly, design to IPC minimums instead of nominal values, and confirm current with an IPC 2152 calculator. Do that, and your traces, planes and power paths will behave exactly as planned. To understand how copper fits into the full build process, read our overview of the PCB manufacturing process.
