If you have spent any time sourcing a new board design, you have probably landed on this exact question: flex PCB vs rigid PCB, which one actually fits my product. It sounds like a simple material choice on the surface, but it touches everything downstream, your bill of materials, your assembly line, your certification timeline, and how long the product survives in the field.
I have worked on both sides of this decision for over eight years, from wearable health patches that needed a paper thin flex circuit to industrial control panels that never left a rigid FR4 board. The honest answer is that neither type is universally better. Each one solves a different mechanical and electrical problem, and picking the wrong one early in the design cycle is one of the most expensive mistakes a hardware team can make.
This guide breaks down flex PCB vs rigid PCB across materials, manufacturing, cost, reliability, and real application scenarios, so you can make a decision that holds up past the prototype stage.
Why this decision matters more right now: the global flexible PCB market was valued at roughly 27 to 31 billion dollars in 2025 and is on track to more than double by the early 2030s, pushed largely by foldable phones, EV battery management systems, and wearable medical devices. Consumer electronics alone already accounts for close to half of that flex circuit demand. That growth is a signal, not a sales pitch, it means more fabs, more materials, and more design tooling are being built around flex circuit technology every year, which lowers the barrier to using it correctly if your product actually needs it.
What Is a Rigid PCB?

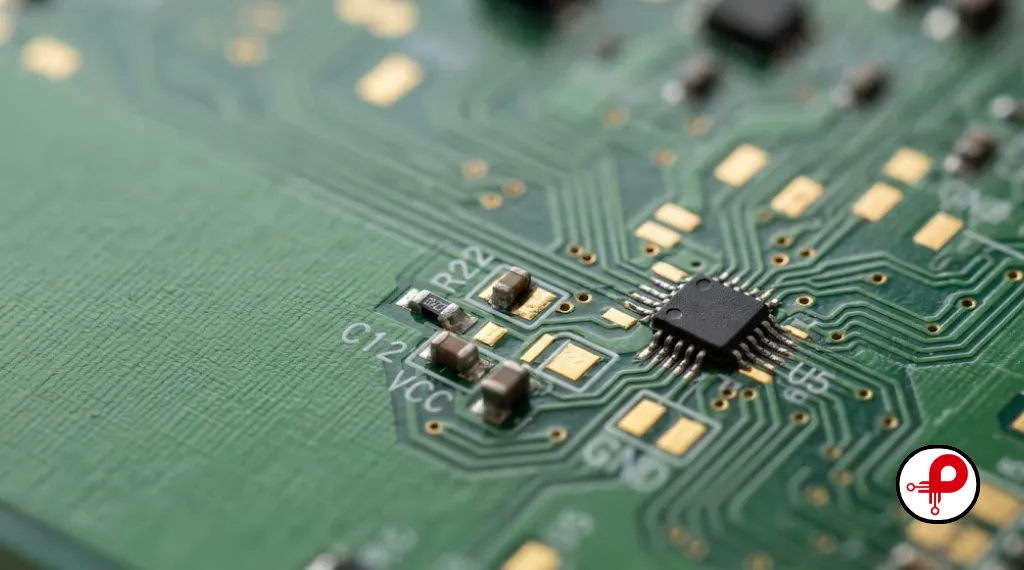

A rigid PCB is a flat, solid circuit board built from a fiberglass reinforced epoxy laminate, most commonly FR4. It does not bend, does not fold, and is not meant to move once it is installed. The glass weave inside the laminate gives it structural strength, which is exactly why rigid boards have been the default choice in electronics for decades.
Rigid boards support surface mount components without any extra reinforcement, they are inexpensive to fabricate at scale, and the supply chain around FR4 is mature, predictable, and well understood by every contract manufacturer on the planet. If your enclosure has room for a flat board and your product does not need to twist or fold, a rigid PCB is almost always the simpler and cheaper path.
What Is a Flexible PCB?
A flexible PCB, often called a flex circuit or FPC, is built on a thin polyimide film instead of fiberglass epoxy. Because polyimide is a ductile plastic rather than a woven, brittle composite, the entire circuit can bend, fold, twist, and conform to tight or irregular spaces without cracking the copper traces bonded to it.
Flex circuits use a laminated polyimide film coverlay instead of liquid solder mask, as standard liquid masks tend to crack under repeated bending.
Defined by IPC standards, these flex boards feature a single conductive layer, ideal for simple interconnects in limited spaces.
These constructions utilize two conductive layers, allowing for more complex routing while maintaining the board’s flexibility.
These consist of three or more conductive layers, providing high-density routing for advanced, compact electronic systems.
Flex PCBs are the critical technology that makes foldable phones, sophisticated hearing aids, and compact wearables possible today.

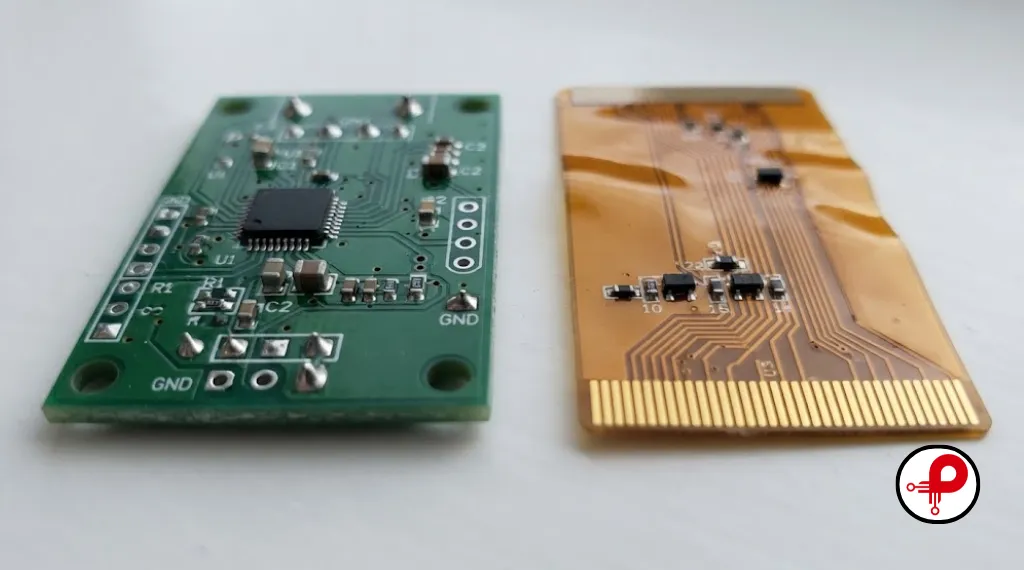

Flex PCB vs Rigid PCB: Quick Comparison Table
| Factor | Rigid PCB | Flexible PCB |
|---|---|---|
| Base material | FR4 fiberglass epoxy | Polyimide film |
| Copper type | Electrodeposited (ED) copper | Rolled annealed (RA) copper |
| Protective layer | Liquid solder mask | Polyimide coverlay |
| Bendability | None, static and flat | Bends, folds, and can flex dynamically |
| Typical thickness | 0.8 mm to 2.4 mm | 0.1 mm to 0.25 mm |
| Component mounting | Direct, no support needed | Needs stiffeners in flex zones |
| Prototype lead time | 3 to 5 days | 1 to 2 weeks |
| Prototype cost | Lower | 50 to 70 percent higher |
| Max operating temperature | Around 150°C | Up to 260°C, short term to 400°C |
| Weight (100 cm², 2 layer) | Roughly 29.6 g | Roughly 14.8 g, about 50 percent lighter |
| Best for | Fixed enclosures, high volume consumer products | Wearables, foldables, tight 3D spaces |
This table alone answers most of the flex PCB vs rigid PCB question for straightforward projects. If your product folds, moves, or needs to save weight and space, flex circuit technology usually wins. If it sits flat inside a box, rigid PCB design keeps costs down without giving up anything you actually need.
Material Differences: FR4 vs Polyimide
The material choice is the root cause of nearly every other difference between these two board types, so it is worth understanding in some depth.
FR4 (Woven Fiberglass)
A composite of woven glass mat and epoxy resin. The weave provides rigidity but creates structural discontinuities, making it prone to cracking under repeated bending and causing dielectric inconsistencies.
Polyimide (Non-Reinforced)
A single-stage, flexible polymer film. With no glass weave, it offers a uniform structure, lower dielectric constant, and excellent thermal stability (up to 260°C–400°C), making it ideal for harsh environments.
Thin/Flex Grade FR4
FR4 processed to 50–100 microns. While seemingly flexible, it is only suitable for a single static fold during assembly; the glass fibers will fracture under dynamic, repeated bending.
Material Verification
Always request the IPC 4204 material classification from your supplier. Marketing terms like “flex-grade” can be misleading if the material does not meet true dynamic flex standards.
Construction and Manufacturing Differences
Manufacturing is where the practical, day to day differences between flex PCB vs rigid PCB really show up.

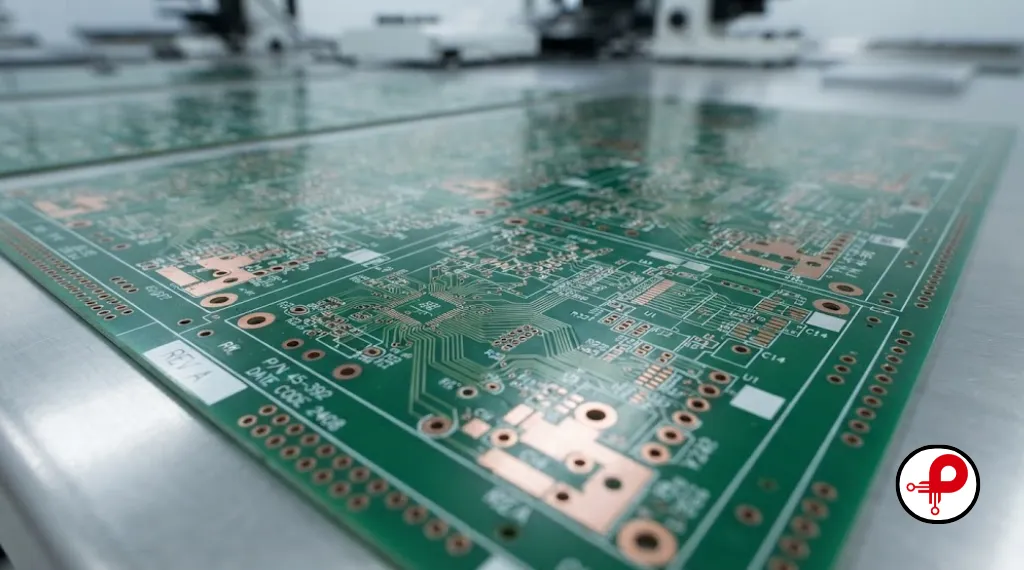

Rigid PCB fabrication is a mature, high speed process. Panels move through drilling, plating, solder mask application, and silkscreen printing on standard equipment that every fab house in the world already owns. That maturity is exactly why rigid boards are cheap in volume and why prototype turnaround can be as fast as three to five days.
Flex PCB manufacturing adds several extra steps. Coverlay has to be precision cut, usually by laser rather than mechanical punching to avoid micro tears at the cut edge, then laminated and aligned to the copper pattern. Thin polyimide film handles differently on the line, roll to roll or panel processing requires more careful tooling, and line speeds are generally slower. If you want the baseline fabrication sequence, imaging, etching, drilling, and plating, before layering flex specific steps on top, our overview of the PCB manufacturing process covers those fundamentals, and our guide on the PCB manufacturing and assembly process goes further into how flex and rigid workflows diverge once assembly enters the picture.
If you are moving from schematic to physical layout for the first time, it also helps to understand the difference between PCB design and PCB layout, because flex boards demand layout discipline that rigid designs can often get away without.
Mechanical Performance: Bend Radius, Weight, and Thickness
Mechanical behavior is the single biggest differentiator in the flex PCB vs rigid PCB comparison, and it is governed almost entirely by bend radius.
-
Rigid FR4 Boards Cannot Flex Safely
Standard FR4 PCBs become brittle beyond their safe bend radius and may experience cracked traces or delamination when subjected to repeated bending.
-
Static and Dynamic Bend Limits Differ
Flex PCBs support both one-time (static) installation and repeated (dynamic) usage, with specific bend radius requirements strictly defined by IPC-2223 guidelines.
-
Flex PCBs Are Up to 50% Lighter
Polyimide-based flex circuits weigh roughly half as much as equivalent rigid FR4 boards, making them the superior choice for weight-sensitive, high-mobility products.
-
Ultra-Thin Construction Maximizes Space
Flex PCBs can be as thin as 0.1 mm, significantly thinner than the 0.8 mm minimum typical for rigid boards, enabling much slimmer and more compact product form factors.
-
Perfect for Foldable and Wearable Devices
Their inherent flexibility, low mass, and compact footprint make flex PCBs the enabling technology for modern smartphones, hearing aids, wearables, and medical devices.
Electrical Performance: Signal Integrity, Impedance, and EMI
Electrical performance is often overlooked in a flex PCB vs rigid PCB decision, but it deserves just as much attention as the mechanical side, especially for high speed or RF designs.

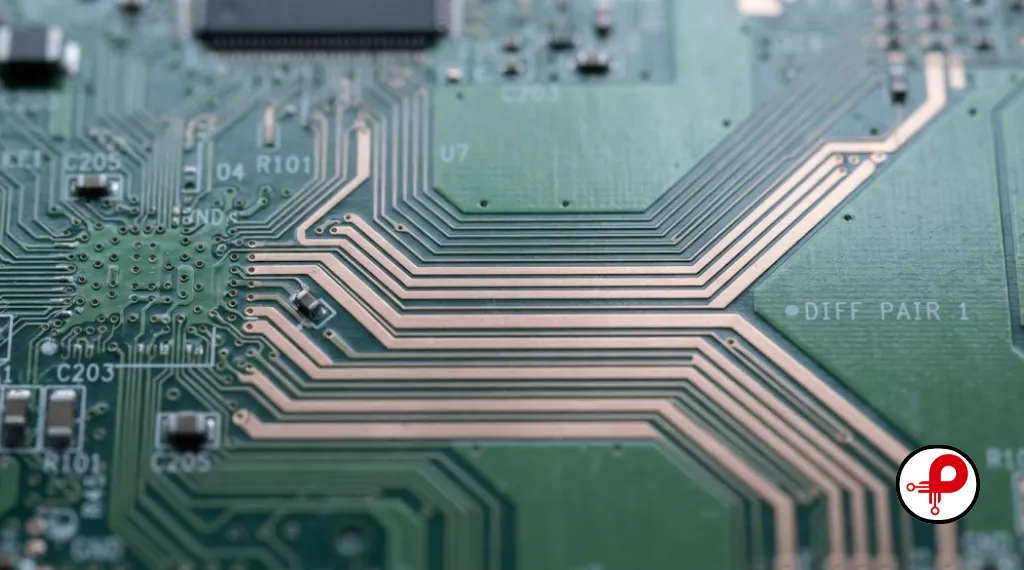

Polyimide’s lower and more uniform dielectric constant, without the glass weave discontinuities found in FR4, generally produces more predictable controlled impedance and thinner constructions for a given signal integrity target. That is a genuine advantage for high frequency RF and microwave circuits where stable Dk over temperature and frequency matters.
Grounding and EMI shielding rules do not disappear just because a board bends. Return paths still need to stay close to their signal traces, ground planes still need to remain continuous across a flex zone wherever possible, and stitching vias are still your best friend near layer transitions. If EMI is a recurring headache on your projects, our breakdown of EMI issues, causes, examples, and fixes and our guide to high frequency switching noise issues both apply directly to flex layouts, sometimes even more than rigid ones, because a flexing ground plane is more prone to microscopic discontinuities over its lifetime. Before certification, it is also worth reviewing electromagnetic compatibility testing requirements early, not after the board is already tooled.
For impedance calculations specifically, tools like our microstrip impedance calculator based on IPC 2141 and our Pi attenuator calculator can save hours compared to manual stack up math, whether you are working on a flex or rigid design.
Design Rules That Apply to Both Board Types
Some fundamentals do not change no matter which side of the flex PCB vs rigid PCB decision you land on.
Reference IPC-2221 for generic design, IPC-2223 for flexible boards, and IPC-6013 for qualification. Early alignment prevents costly redesigns after fab house reviews.
While IPC-2221 formulas still apply, flex circuits require precision; overly wide traces add unnecessary stiffness, impeding the board’s ability to bend effectively.
Avoid stacking traces directly on top of each other. Always stagger them and route perpendicular to the bend axis to prevent trace fractures during dynamic movement.
Beyond standard rigid checks, Flex DFM must account for coverlay registration, bend zone clearance, and copper “rabbit ear” anchors to prevent pad lifting.
If you want the full picture before you start routing, our guides on PCB layout best practices and circuit board design rules cover both flex and rigid scenarios in more depth than we have room for here, and our roundup of common PCB design mistakes is worth a read before your gerbers go out the door. You can also use our PCB track width calculator and via current capacity calculator to double check numbers before finalizing a stack up.
Cost Comparison: Flex PCB vs Rigid PCB

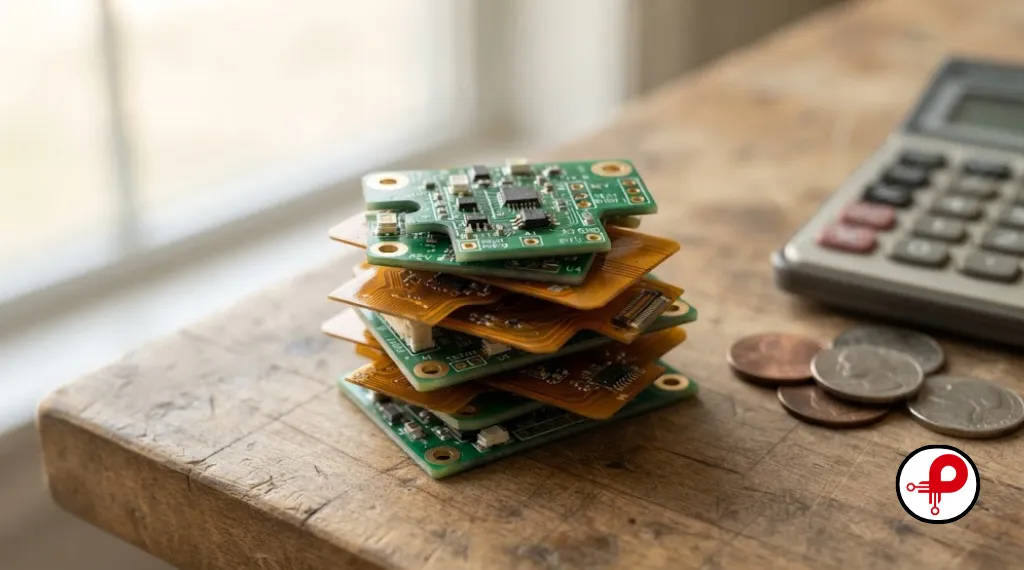

Cost is usually the deciding factor once the mechanical requirement has been settled, so let’s put real numbers around it.
| Cost Driver | Rigid PCB | Flexible PCB |
|---|---|---|
| Base material cost | Lower, FR4 is a commodity | Higher, polyimide and RA copper cost more per unit area |
| Tooling and setup | Standard, widely available | Specialized, fewer qualified suppliers |
| Prototype cost (low volume) | Baseline | Roughly 50 to 70 percent higher |
| Assembly cost | Standard SMT line | Needs stiffeners, fixtures, and slower handling |
| Volume production cost | Drops significantly at scale | Still drops at scale, but the gap to rigid rarely closes completely |
| Total system cost | Can require connectors and wiring harnesses | Often eliminates connectors, lowering total system cost |
Here is the detail that catches teams off guard: a flex circuit almost always costs more per board, but it can lower total system cost by removing connectors, ribbon cables, and the labor to install them. If you are replacing a flat cable or FFC connector between two rigid boards, a simple one or two layer flex circuit is frequently cheaper and more reliable than the connector based alternative, even though the bare board price looks higher on paper. That tradeoff is exactly the kind of decision covered in our comparison of custom PCB design vs off the shelf solutions.
Reliability and Lifespan
Reliability testing tells a clear story once you look at the actual IPC test methods rather than marketing claims.
Rigid PCBs are tested primarily for thermal cycling, plating adhesion, and solderability, since they are never expected to move after assembly. Flex PCBs face a tougher set of criteria under IPC TM 650, including dynamic bend testing that requires the board to survive 100,000 or more bend cycles at a defined radius and frequency without a single trace break, plus thermal shock cycling between roughly minus 65°C and 150°C.
The failure modes differ too. Rigid boards typically fail from thermal stress, via fatigue, or moisture ingress over long service life. Flex boards fail from copper fatigue at the bend point, coverlay delamination, or pad lift if anchoring and stiffener placement were not handled correctly at the design stage. Choosing rolled annealed copper over electrodeposited copper in any dynamic flex zone is non negotiable if you care about long term reliability, since ED copper looks fine at first inspection but starts cracking within weeks of real world hinge use.

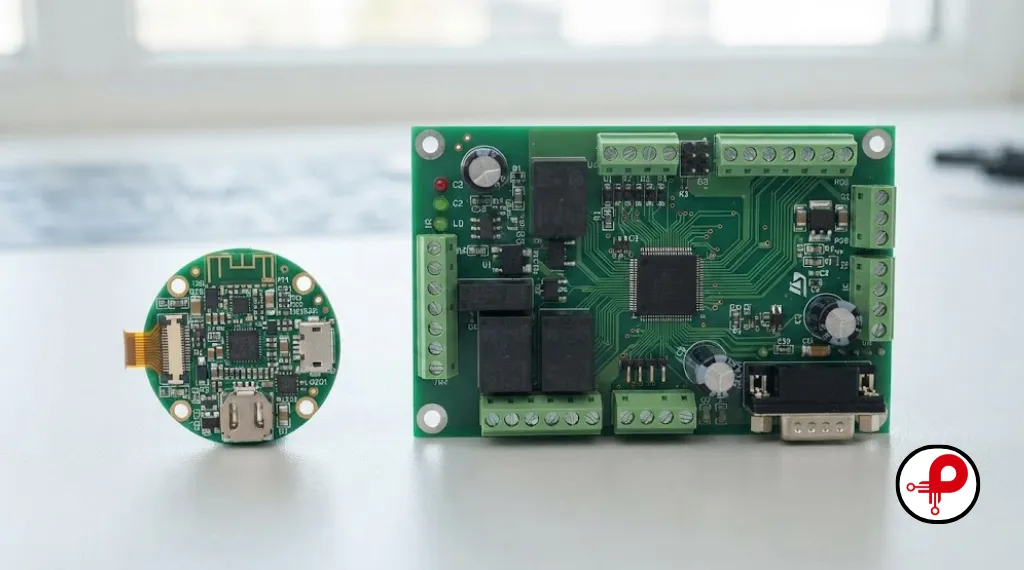

Applications: Where Each Board Type Wins
| Industry or Product | Recommended Board Type | Why |
|---|---|---|
| Consumer electronics, smartphones, foldables | Flex or rigid-flex | Space savings and folding mechanisms |
| Wearable and medical devices | Flex PCB | Conforms to the body, lightweight, biocompatible options available |
| Industrial control panels | Rigid PCB | Fixed enclosures, cost sensitive, high component density |
| Automotive under hood electronics | Flex or rigid-flex | Withstands vibration and high temperature |
| Aerospace and defense systems | Rigid-flex | Reduces connector failure points under vibration |
| IoT sensors and embedded devices | Rigid PCB, sometimes flex for compact housings | Depends heavily on enclosure shape |
| LED lighting strips | Flex PCB | Needs to bend around fixtures and curved surfaces |
If you are building a compact connected device, our walkthrough on how to build an IoT prototype quickly and our Arduino Uno Q guide are useful starting points before you commit to a board type. Teams building connected wearables or peripherals also tend to ask about how to make a Bluetooth device, where flex circuits show up constantly because of the space constraints inside small enclosures. For broader product categories, our consumer electronics product design guide and industrial product design engineering resource both go deeper into how board choice fits into the full product development workflow, alongside The Complete Electronic Product Design Workflow, which maps out the entire journey from concept to certified product.
Rigid-Flex PCB: The Middle Ground
A rigid-flex PCB is not really a separate category from the flex PCB vs rigid PCB debate, it is a hybrid that combines both in a single laminated structure. Rigid FR4 sections provide a stable base for components and connectors, while polyimide flex sections handle the folding or movement between those rigid sections.
Rigid-flex earns its cost premium when you are eliminating three or more connectors or cables from a design, since connector failure under vibration or thermal cycling is one of the most common causes of field returns. It is the wrong choice, though, for a design that only needs a single flex connection between two boards, or for any zone that needs to flex dynamically and repeatedly, since rigid-flex flex zones are engineered for a static fold during assembly, not for millions of bend cycles in service. Prototype lead times for rigid-flex typically run two to four weeks, noticeably longer than pure flex or pure rigid boards, so factor that into your schedule early.
How to Choose: A Simple Decision Framework
Use this sequence of questions to cut through the flex PCB vs rigid PCB decision quickly.
If the board does not need to move after installation, choose a rigid PCB and proceed with your design.
Does it flex once during assembly, or repeatedly during use? A one-time fold suggests flex or rigid-flex, while repeated dynamic flexing requires pure flex with rolled annealed copper.
If you can eliminate three or more connectors between rigid sections, rigid-flex likely lowers your total system cost, despite the higher price of the bare board.
For wearables or foldable devices, lean toward flex. It can be up to seven times thinner and roughly half the weight of an equivalent rigid board.
If you are designing a high-volume product in a flat, standard enclosure, rigid PCB remains the optimal default choice.
Running through those five questions before you open your CAD tool will save you from the two most expensive mistakes in this space, over-engineering a flat, low cost product with unnecessary flex circuitry, or under-engineering a folding product with a rigid board that was never going to survive the mechanical requirement.
Common Mistakes to Avoid
Soldering fine pitch or BGA components directly onto unsupported flex material is a frequent failure point, since flex has no mechanical backbone without a stiffener underneath the pad. Routing traces parallel to the bend axis instead of perpendicular to it is another classic error that shows up fine in the CAD tool and fails within weeks of mechanical cycling. Specifying electrodeposited copper in a dynamic flex zone because it is cheaper is a false economy once warranty returns start coming in. And treating flex grade FR4 as a substitute for true polyimide in a dynamic bending application is one of the fastest ways to see delamination in the field.
If you are inheriting an existing design, or reverse engineering a competitor’s board to understand its construction, our guide to reverse engineering electronic circuits covers how to identify flex versus rigid construction from a teardown, which is a useful skill before you commit to your own stack up.
Certification Considerations

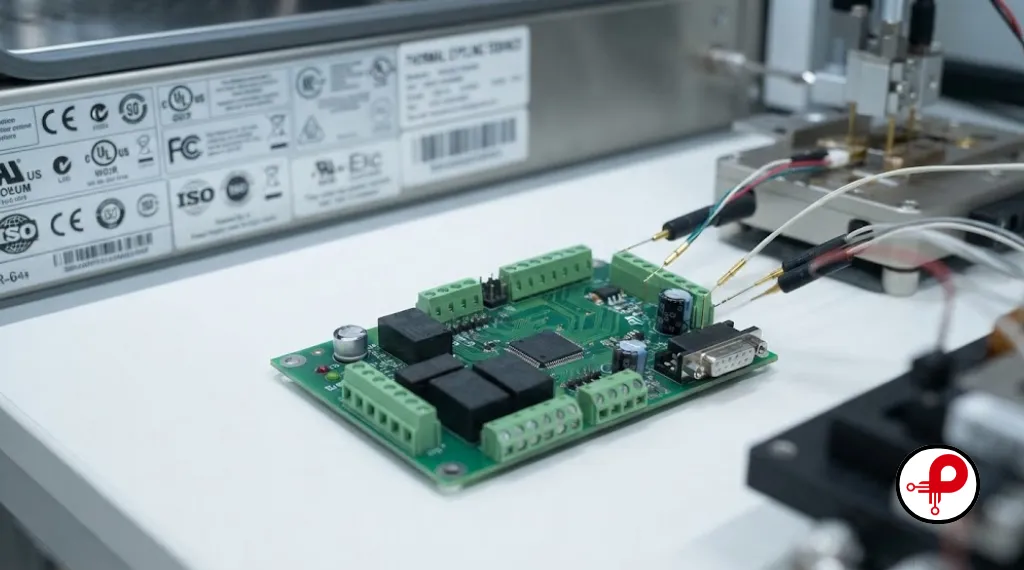

Board type also affects your certification path. Flex circuits in wearable or medical products often need biocompatibility testing in addition to standard EMC and safety certification, while automotive and aerospace rigid-flex assemblies face additional vibration and thermal cycling requirements under military or automotive specifications. Planning certification requirements before finalizing your stack up, rather than after, avoids costly redesigns. Our guide on how to certify an electronic product walks through the process end to end and is worth reviewing alongside your PCB selection, not after it.
Future Trends in Flex and Rigid PCB Technology for 2026
Adhesiveless polyimide laminates continue gaining ground over traditional acrylic bonded flex material, since removing the adhesive layer reduces thickness and improves both thermal stability and bend life. Foldable and rollable consumer devices are pushing flex material suppliers toward thinner, higher cycle count constructions rated well beyond a million bend cycles. Electric vehicles are becoming a major growth driver too, with automakers increasingly replacing wiring harnesses in battery management systems with flex circuits to cut weight and reclaim space inside the pack. On the rigid side, high density interconnect techniques keep shrinking component footprints, which is narrowing the size gap between rigid and flex solutions for some smaller form factor products, even though the fundamental mechanical tradeoff between the two board types has not changed.
Frequently Asked Questions
1. Is Flex PCB better than Rigid PCB?
↑2. Why are Flex PCBs more expensive than Rigid PCBs?
↓3. Can Flex PCBs replace Rigid PCBs completely?
↓4. Which PCB is used in smartphones?
↓5. What material is used in Flexible PCBs?
↓6. What industries use Flex PCBs the most?
↓7. Do Flex PCBs need stiffeners?
↓8. What is the difference between a stiffener and a Rigid-Flex PCB?
↓Key Takeaways
Flex PCB vs rigid PCB is not a competition with a single winner, it is a matching exercise between your product’s mechanical requirements and the right material and construction. Rigid PCB remains the default for flat, cost sensitive, high volume electronics. Flexible PCB earns its premium when a product needs to bend, fold, save weight, or fit into a tight three dimensional space. Rigid-flex sits between the two, trading a higher bare board cost for fewer connectors and better long term reliability in vibration heavy environments.
Get the material choice right at the schematic stage, follow IPC 2223 for anything that bends, and involve your fab house early. That single decision, made correctly at the start, prevents most of the redesigns, certification delays, and field failures that show up later in a product’s life.
For authoritative technical references while you finalize your stack up, the IPC standards library at ipc.org, Altium’s design resource center at altium.com, and IEEE Xplore at ieeexplore.ieee.org are all worth bookmarking alongside your internal design guides.
