High frequency switching noise issues are among the most common and frustrating challenges faced by power electronics engineers, PCB designers, and system integrators. As electronic devices become smaller, faster, and more power dense, unwanted noise generated by switching regulators, inverters, and high speed digital circuits increasingly threatens signal integrity, electromagnetic compliance, and overall reliability. Whether you are designing a simple buck converter for a consumer gadget or a complex multilayer board for automotive electronics, understanding the root causes of switching noise in power electronics is the first step toward building noise immune systems.
Introduction
This comprehensive guide explores the physics behind high frequency noise in circuits, the real world consequences of EMI caused by switching power supply, and a complete toolkit of practical solutions. These solutions include PCB layout noise mitigation techniques, decoupling capacitor placement, ground loop noise issues, and advanced filtering. By the end, you will know exactly how to diagnose and fix switching power supply noise problems and achieve EMC compliance in electronic systems.
Understanding High Frequency Switching Noise Issues
What Are High Frequency Switching Noise Issues?
↑Every switching transition excites parasitic inductance and capacitance present in PCB traces, bond wires, packages, and device structures. Together these parasitic elements form an unintended LC resonant circuit that produces ringing and overshoot, making it one of the primary sources of noise in high-speed switching systems.
Why Does a Switching Regulator Create Noise?
↓When the switch turns on or off, energy stored in the loop inductance is transferred into parasitic capacitances. This energy exchange generates voltage spikes and high-frequency ringing known as switching transients. These transients are a major contributor to EMI, signal integrity problems, and power supply noise.
How Does Reverse Recovery Generate High Frequency Noise?
↓The sudden change in current creates large di/dt spikes that interact with stray inductance throughout the circuit. The result is additional voltage overshoot, ringing, and bursts of high-frequency switching noise that can spread through power and signal paths.
Conducted EMI vs Radiated EMI from Switching Power Supplies
↓Conducted EMI travels through power and ground connections. It is typically measured between 150 kHz and 30 MHz and can propagate into other subsystems through shared power rails and interconnections.
Radiated EMI propagates through electric and magnetic fields and becomes dominant above 30 MHz. It is commonly responsible for failing EMC, FCC, and CE radiated emission tests.
Most switching power supplies generate both conducted and radiated noise simultaneously, requiring careful PCB layout, filtering, shielding, and grounding techniques to achieve compliance and reliable operation.
Identifying the Root Causes of High Frequency Noise
Causes of High Frequency Noise in PCB
Many engineers ask what are the causes of high frequency noise in PCB. The most common culprits are described here.
Large switching loops are a primary cause. The input capacitor loop, which runs from the input capacitor through the high side FET, then the low side FET, and back to the input capacitor, carries extremely high di/dt. If the loop area is large, it acts as a loop antenna radiating EMI.
Improper decoupling capacitor placement is another major factor. Decoupling capacitors placed too far from the load or switching FETs add trace inductance, rendering them ineffective at high frequencies.
Inadequate ground plane design also creates noise. A split or slotted ground plane forces return currents to take long paths, creating ground loop noise issues and common mode radiation.
Fast edge rates without snubbing cause severe ringing. Very low gate resistance that enables high speed switching without an RC snubber leads to problematic oscillations.
Parasitic resonance between input inductance and ceramic capacitors is also common. Ceramic capacitors have low ESR, so they can resonate with incoming cable inductance, causing unexpected switching power supply noise problems.
Signal Integrity Problems in Circuits Caused by Switching Noise
Signal integrity problems in circuits often appear as jitter, duty cycle distortion, false triggering, or reduced noise margins. For example, a 100 millivolt peak to peak noise spike on a 3.3 volt logic supply might still be within the supply tolerance, but if that noise couples into a clock line, it can cause timing violations. In mixed signal boards, switching noise from a nearby DC DC converter can degrade an ADC’s effective number of bits by two to three bits.
High speed digital circuit noise is particularly troublesome in DDR memory interfaces, high speed USB, and Gigabit Ethernet. The fast edges of digital signals can excite the same parasitic resonances as the switching regulator, causing crosstalk and electromagnetic interference in electronics.
Ground Loop Noise Issues: A Hidden Menace
Ground loop noise issues arise when multiple return paths exist for current. In a typical system with a switching power supply, the high frequency return current wants to follow the path of least inductance, which is directly under the signal trace. But if the ground plane is discontinuous or if there are multiple ground connections to chassis, circulating currents develop. These currents induce voltage drops across the ground impedance, which then appears as noise on every signal referenced to that ground. This is a classic cause of why is my circuit producing noise when everything seems correctly connected.
How to Reduce Switching Noise in Electronics with Practical Solutions
PCB Layout Noise Mitigation Techniques
PCB layout noise mitigation techniques are the most cost effective way to control high frequency switching noise issues. The following methods should be applied from the very first layout iteration.
-
Minimize Critical High di/dt Loop Areas
First, identify all high di/dt loops in the system. In a synchronous buck converter, the most critical loops are the input power loop (input capacitor → high-side MOSFET → low-side MOSFET → back to input capacitor) and the gate drive loop (driver → gate → source → back to driver). These loops must be physically minimized to reduce parasitic inductance and switching noise. Place input ceramic capacitors within 2–3 mm of the MOSFETs. Use multiple parallel vias for both power and ground connections to reduce loop inductance and improve transient response during fast switching events. -
Optimize Decoupling Capacitor Placement Strategy
Decoupling capacitor placement is critical for high frequency noise suppression. Use a frequency-tiered approach: place 100 pF–1 nF capacitors closest to the IC power pins, followed by 10 nF, then 100 nF capacitors. Bulk capacitors (4.7 µF–22 µF) should be placed further away. Each capacitor must have its own dedicated via pair directly adjacent to the pads to minimize ESL (Equivalent Series Inductance). Use X7R or C0G dielectric capacitors for stability at high frequency, and avoid Y5V due to poor performance. Poor placement leads to ineffective filtering above ~50 MHz. -
Use Solid Ground Plane and Controlled Stackup
A continuous ground plane is essential for controlling return current paths in high-speed switching circuits. In a 4-layer PCB stackup: Layer 1: Components and short signal traces Layer 2: Solid uninterrupted ground plane Layer 3: Power planes (can be segmented) Layer 4: Signal routing and auxiliary traces Never route high-speed or switching signals across a split ground plane, as this forces return currents to detour, increasing loop area and radiated EMI significantly. -
Implement Snubber Networks for Ringing Suppression
Snubber networks are used to damp LC resonance caused by parasitic inductance and capacitance. An RC snubber placed across the MOSFET (drain-to-source) or rectifier helps suppress high-frequency ringing. To design a snubber, first measure ringing frequency using an oscilloscope with a short ground spring. Estimate parasitic inductance and capacitance, then choose: R ≈ √(Lparasitic / Cparasitic), typically 2–20 Ω Csnub ≈ 2–4 × Cparasitic This method is widely used in power electronics for reducing switching transients and improving EMI performance.
Component Level Solutions for Noise Reduction
Slowing down the gate drive is one of the simplest answers to how to reduce switching noise in electronics. Increasing the gate drive resistor slightly, for example using a 10 ohm resistor instead of 2.2 ohms, can significantly reduce ringing with only a small penalty in switching loss. For GaN and SiC devices, this trade off is more delicate due to faster edges, but the principle holds.
Using ferrite beads and common mode chokes also helps. A ferrite bead in series with the input power line attenuates conducted EMI caused by switching power supply above 10 megahertz. Select a bead with high impedance at the noise frequency and sufficient current rating. For common mode noise, a common mode choke on the input or output is highly effective against ground loop noise issues that appear as common mode currents.
Spread spectrum frequency modulation is another useful technique. Many modern switching regulators offer spread spectrum or frequency dithering functionality. By varying the switching frequency by a few percent, the energy is spread over a wider bandwidth, reducing peak emissions. This does not eliminate high frequency noise in circuits, but it helps pass EMC tests.

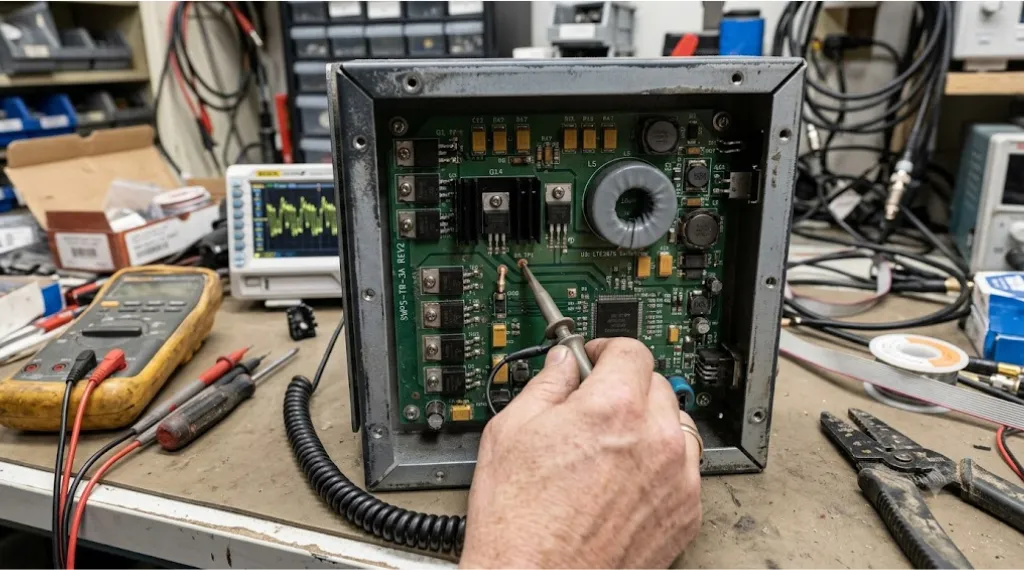

How to Fix EMI Noise in Power Supply Step by Step
When you encounter a product that fails EMC or exhibits erratic behavior, follow this systematic approach for how to fix EMI noise in power supply.

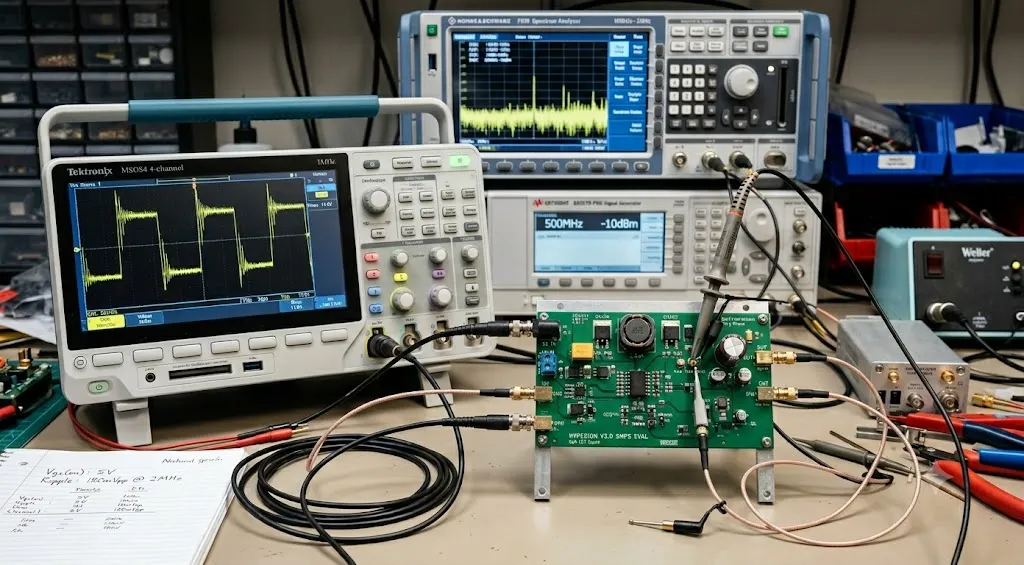

Step 1: Identify the Noise Frequency
Use a near-field H probe along with a spectrum analyzer or oscilloscope FFT to locate the strongest emissions. Common problem frequencies include 30–100 MHz from primary ringing and 100–300 MHz from second harmonic content in fast switching systems.
Step 2: Isolate the Noise Source
Disable different sections of the PCB one by one. If the emissions disappear when the switching regulator is turned off, then the power stage is confirmed as the source of power electronics switching disturbances.
Step 3: Inspect PCB Layout and Return Paths
Check for large high di/dt loop areas, poor decoupling capacitor placement, and missing ground vias. In many cases, simply relocating a capacitor or adding a stitching ground via significantly reduces switching noise issues.
Step 4: Add or Tune Snubber Networks
Install an RC snubber directly across the switching FET. Start with 10 Ω and 470 pF, then tune experimentally while observing ringing reduction on an oscilloscope. Proper snubber tuning effectively damps LC resonance.
Step 5: Improve Input and Output Filtering
Add a ferrite bead followed by a 100 nF capacitor at the input stage. For output noise reduction, implement a second-stage LC filter such as 1 µH inductor with 22 µF ceramic capacitors to suppress high frequency switching noise.
Step 6: Modify Gate Drive Behavior
Increase gate resistor value slightly to slow down switching edges and reduce dV/dt and dI/dt. If using a bootstrap driver, ensure the bootstrap capacitor has low ESR and proper placement to avoid additional switching noise.
Step 7: Retest and Iterate the Design
After each modification, remeasure emissions using the same setup. EMI and switching noise issues are typically resolved through iterative refinement of layout, filtering, and switching behavior optimization.
How to Improve Signal Integrity in Circuits Affected by Switching Noise
Improving signal integrity in circuits sharing a PCB with noisy switching regulators requires following five essential rules. Use solid grounding and controlled return paths, keep signal traces short and well-separated from switching nodes, apply proper decoupling capacitors near ICs, isolate analog and digital sections, and carefully design power distribution to reduce noise coupling and ensure stable, clean, and reliable circuit operation across the entire system.
Keep analog traces, clock lines, and reset signals at least 5 mm away from switching nodes and inductors. This reduces capacitive and inductive coupling from high dv/dt and di/dt switching noise sources.
Place grounded guard traces on both sides of sensitive signals. This creates an electrostatic barrier that reduces high frequency EMI coupling from nearby switching regulator traces.
Do not route high-speed or sensitive signals parallel to switching regulator paths. Use perpendicular crossing whenever unavoidable to minimize long coupling length and reduce induced noise.

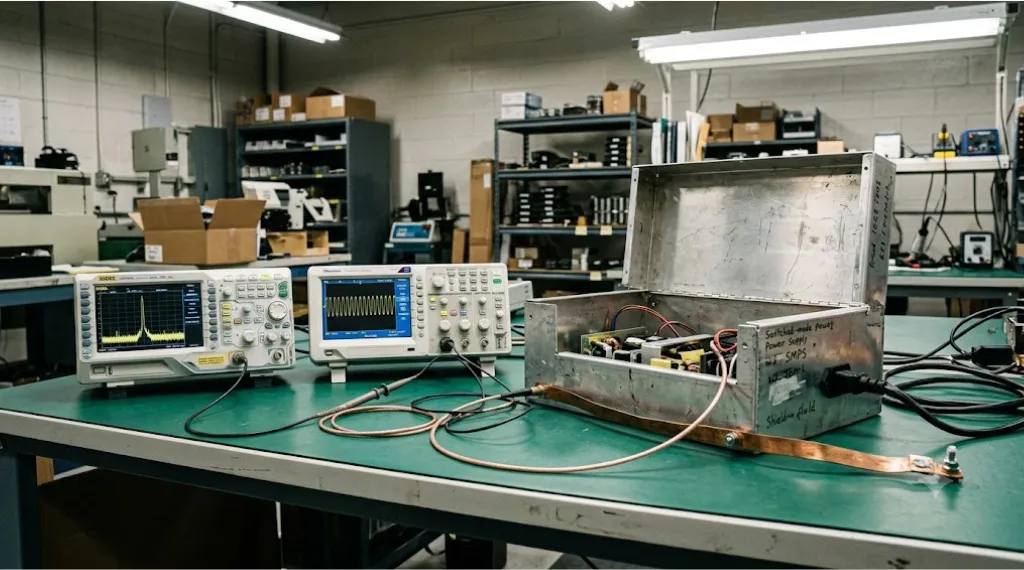

Surround sensitive sections with grounded copper pours to reduce EMI penetration. For extreme noise environments, use metal shielding cans over switching regulators and high-power sections.
Use LVDS, RS-485, or other differential signaling standards for long interconnects. These systems reject common-mode electromagnetic interference and significantly improve robustness in noisy power environments.

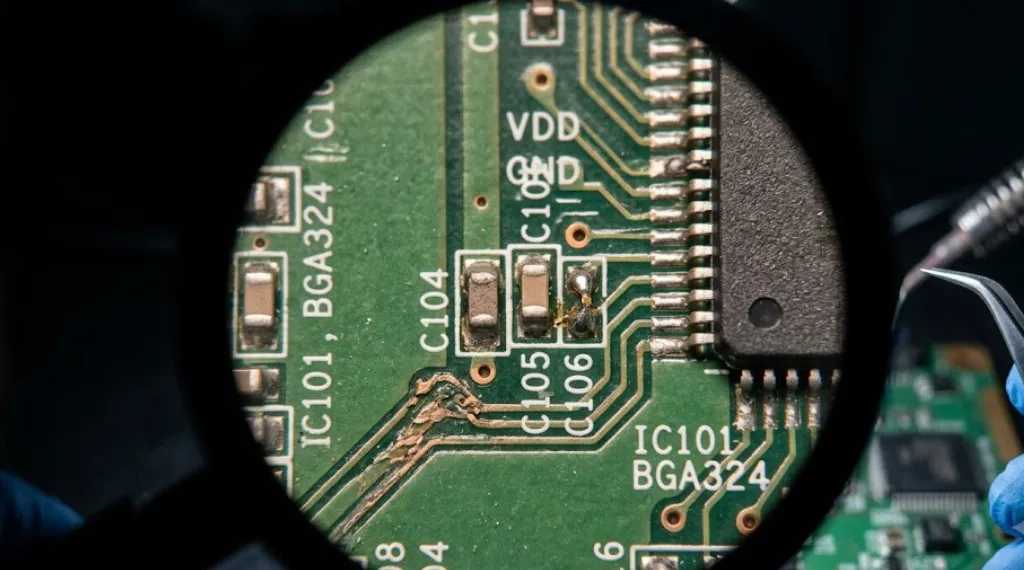

Decoupling Capacitor Placement Detailed Best Practices
Decoupling capacitor placement is critical for controlling high-frequency noise. Place 0.1 µF capacitors directly across IC power and ground pins with the shortest traces and dedicated vias. Use 1–10 nF capacitors close to switching FETs, and position bulk capacitors farther away. Avoid shared vias and linear placement, as these increase inductance and reduce high-frequency performance. Low-inductance paths matter more than total capacitance.
| Application Area | Capacitor Type / Value | Placement Strategy | Key Best Practice |
|---|---|---|---|
| Integrated Circuits (ICs) | 0.1 µF (100 nF) | Place directly across power and ground pins with the shortest possible trace length. | Place via adjacent to capacitor pad (do not share vias with other components). |
| Switching FETs | 1 nF – 10 nF | Place directly between drain-source or across input terminals. | Minimize loop inductance to suppress high-frequency switching noise. |
| Bulk Decoupling | 10 µF – 100 µF | Place a few centimeters away from the IC or switching stage. | Handles low-frequency energy storage, not high-frequency noise. |
| Via Strategy | Multiple Vias per Pad | Use 2 vias per capacitor pad whenever possible. | Reduces effective inductance by ~30–50%. |
| Common Mistake | Shared Via / Linear Placement | Capacitors placed in a row sharing a single via. | Increases inductance → destroys high-frequency decoupling performance. |

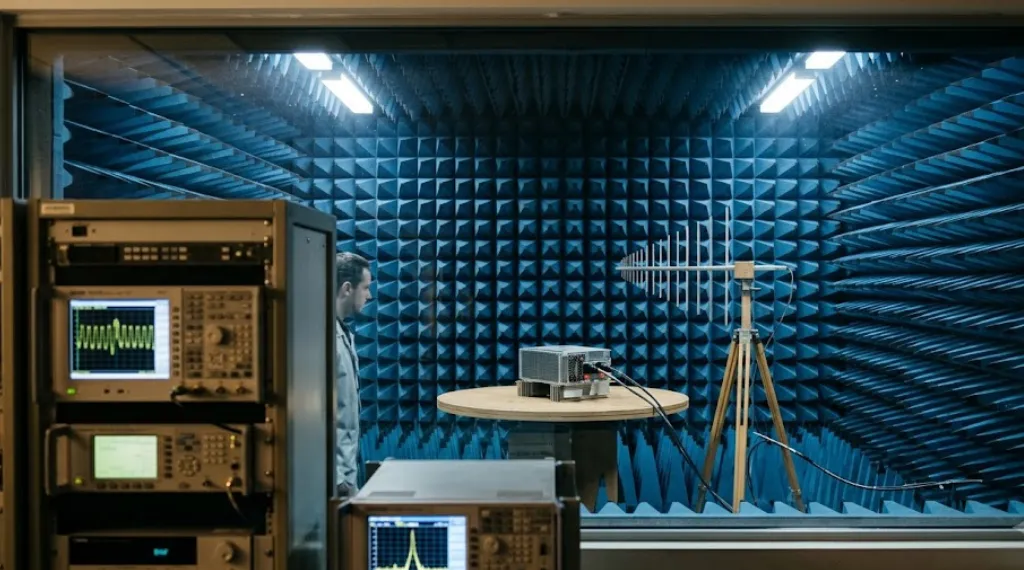

EMC Compliance in Electronic Systems
Achieving EMC compliance in electronic systems requires a structured approach because high frequency switching noise issues are a major cause of test failures in modern power electronics. A complete design must consider conducted emissions, radiated emissions, and transient immunity together.
For conducted emissions (150 kHz to 30 MHz), the main goal is to stop switching noise from flowing back into the input supply. This is done using an input EMI filter consisting of a common-mode choke, X capacitors for differential noise, and Y capacitors for high frequency return paths. Proper selection and placement ensure switching harmonics remain within regulatory limits.
For radiated emissions (30 MHz to 1 GHz), PCB layout is critical. High di/dt loops should be minimized because they act like antennas. Snubber circuits reduce ringing, while solid grounding and shielding help contain electromagnetic energy. Cables and connectors must be carefully managed since they can radiate high frequency EMI generated on the board.
Transient immunity focuses on preventing external disturbances from affecting system operation. Ferrite beads on external I/O lines help suppress common-mode interference and protect sensitive circuits from electronic noise coupling.
Precompliance testing using a near-field probe and spectrum analyzer is highly recommended. It helps identify switching noise problems early, allowing engineers to fix issues before formal EMC certification and reducing costly redesigns.
Answers to Common User Questions
What happens if a lithium-ion battery has no protection circuit?
↑Can I add a protection circuit to an unprotected 18650 cell?
↓What is the difference between a protection circuit and a charger IC?
↓Why does a lithium battery sometimes refuse to recharge after full discharge?
↓What does 4S 40A mean on a BMS board?
↓Does cell balancing actually extend battery life?
↓Which is better: DW01A or TI BQ29700?
↓Advanced Topic on Switching Transients in Power Circuits with Wide Bandgap Devices
The emergence of GaN and SiC transistors has intensified high frequency switching noise issues. These devices have switching edges as fast as one to two nanoseconds, which generate significant energy up to 500 megahertz. Switching transients in power circuits with GaN require extreme layout discipline. The gate loop must be under one nanohenry, and decoupling capacitors must be placed within one millimeter of the device. Traditional snubber designs may not work because the parasitic elements are much smaller. Instead, designers use active clamping or optimized gate drive waveforms. Nevertheless, the fundamental principles remain the same. Minimize loop inductance, control edge rates, and use proper PCB layout noise mitigation techniques.
Conclusion
High frequency switching noise issues are an unavoidable reality in modern power electronics and high speed digital design. However, they are not insurmountable. By understanding the physical origins, which are parasitic inductance, parasitic capacitance, and fast edge rates, and by applying systematic solutions such as decoupling capacitor placement, snubbers, solid ground planes, and proper filtering, you can dramatically reduce switching noise in power electronics. Whether you are dealing with EMI caused by switching power supply, trying to pass EMC compliance in electronic systems, or simply asking why is my circuit producing noise, the principles and practical techniques in this guide will serve as a complete reference.
Remember that every switching regulator creates noise, but only well designed systems control it. Start with good PCB layout, validate with measurements, and iterate until your design is clean, reliable, and compliant.
