PCB Fiducials Design, Placement, Types & Best Practices

PCB fiducial design is the practice of adding small, precisely defined reference marks to a circuit board so that automated assembly machines can find its true position. A fiducial is usually a solid copper dot surrounded by a clear solder mask opening. Solder paste printers, pick and place machines and inspection systems photograph these marks and use them to correct for board shift, rotation and scale. Without them, a machine has to trust the mechanical position of the board, and that rarely matches the CAD data closely enough for modern components.

Good PCB fiducial design takes a few minutes during layout. Poor PCB fiducial design shows up later as skewed placement, slow machine setup, false AOI calls and rework. A fiducial adds almost nothing to the bill of materials, yet it can decide whether a 0.4 mm pitch part lands on its pads or half a pad to one side.

This guide covers fiducial types, geometry, placement logic, panel and stencil requirements, local fiducials for dense parts, common mistakes and a release checklist. Where numbers appear, they are typical starting points. The final authority is always your assembler’s DFM rules and the capability of the machines that will build your board.

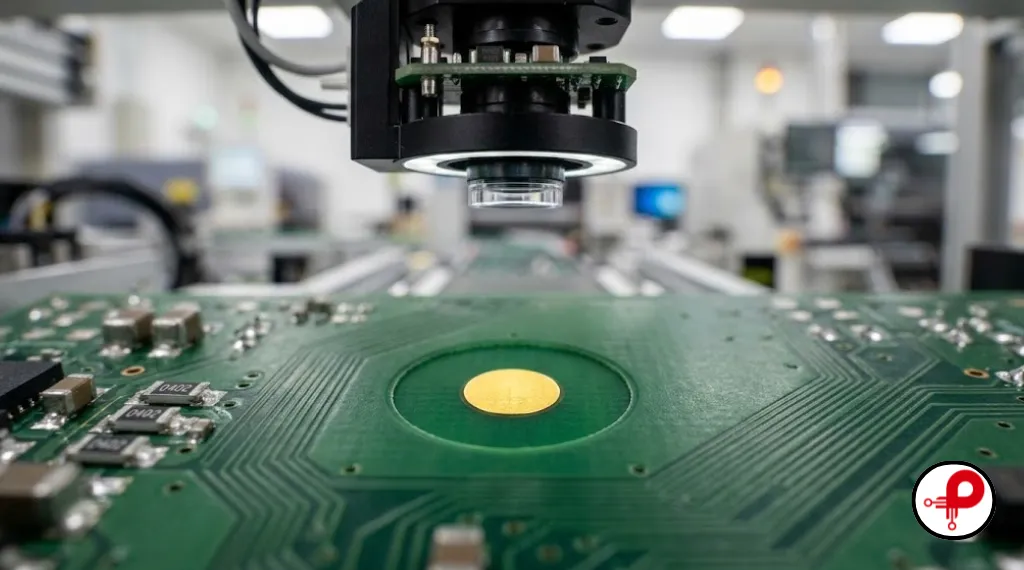

What Are PCB Fiducials and Why Do They Matter?

Before getting into PCB fiducial design rules, it helps to understand what the machine is actually doing with the mark. A fiducial is a reference feature with a known location in the PCB database. The design data defines exactly where the mark should sit relative to every pad, so a camera can find the real mark, compare it with the expected position and compute the difference. The machine then shifts its coordinate system to match the physical board.

Several things go wrong without that correction. Boards sit in conveyors and fixtures with some mechanical play, so a board may be offset a fraction of a millimetre in X or Y, or slightly rotated. Fabrication adds its own error. Laminate expands or shrinks during lamination and imaging, and artwork scaling can leave the copper pattern a little larger or smaller than nominal. Fiducials let the machine see all of this directly instead of guessing.

What the vision system corrects

With two fiducials, a vision system can correct translation in X and Y and rotation of the board. With three or more, it can also estimate scale and some skew. That matters on larger boards and panels, where a small percentage error turns into a real offset at the far corners.

This process is called board registration or global alignment. The machine does not physically move the board into place. It rewrites its own placement coordinates so every component position is transformed to match the actual copper.

Where fiducials are used in assembly

Fiducials support several stages of SMT assembly:

The payoff is higher first pass yield, shorter machine programming time and fewer boards held at inspection for borderline placement. For a run of ten prototypes the benefit is mostly setup speed. For a production lot it becomes a yield issue. If you want the wider picture of where each vision step sits, the PCB manufacturing and assembly process overview walks through the sequence from bare board to finished assembly.

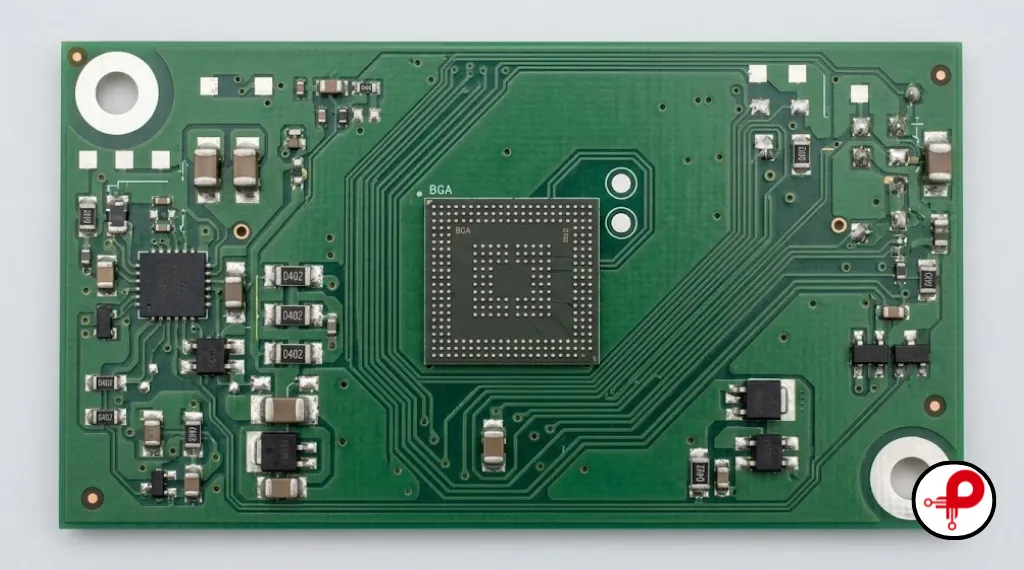

Types of PCB Fiducials

Fiducials are grouped by what they align and where they sit, and each group has its own PCB fiducial design requirements. The same physical mark, a copper dot with a clear mask opening, can serve different purposes depending on its location. Understanding the types is the first step in any sound PCB fiducial design.

Global fiducials

Global fiducials give the machine a reference for the whole board or panel. They are normally placed near board corners or on panel rails. The machine locates them first and uses them to correct position, rotation and, with enough marks, scale.

Almost every board that goes through an automated SMT line should carry them. They are the minimum fiducial set. Even a board that mixes surface mount and through hole parts, as discussed in the comparison of SMT and through hole assembly, needs global marks for the SMT portion of the process.

Local fiducials

Local fiducials sit close to a specific component or cluster of components, typically a fine pitch or high pin count device. After global correction, the machine looks at the local marks and applies a smaller, more specific correction for that area.

They are used when global alignment is not precise enough for the tolerance of a particular footprint. Later sections explain when that happens.

Board fiducials and panel fiducials

Board fiducials belong to a single circuit. If the board is delivered as one piece, these are its global fiducials. If the board sits inside a panel, each circuit often carries its own set so the machine can correct every circuit individually.

Panel fiducials sit on the panel rails or frame and describe the panel as a whole. They let the machine register the entire array before it works on individual boards. Many assemblers want both levels on panelized work: panel marks on the rails and board marks on each circuit.

Stencil fiducials

Stencil fiducials are not on the PCB. They are marks etched or cut into the solder paste stencil so the printer can align the stencil to the board. They correspond to the board’s own fiducials and are covered in detail later.

Which type to use and when

A simple single board design with mostly passives and coarse pitch ICs may need only global fiducials. A dense mixed technology design, panelized, with BGAs and fine pitch connectors, may need all five types.

PCB Fiducial Design Guidelines

A fiducial works because a camera can see it clearly and consistently. Every rule of PCB fiducial design serves that goal: a well defined shape, strong contrast with the surroundings and no distracting features nearby.

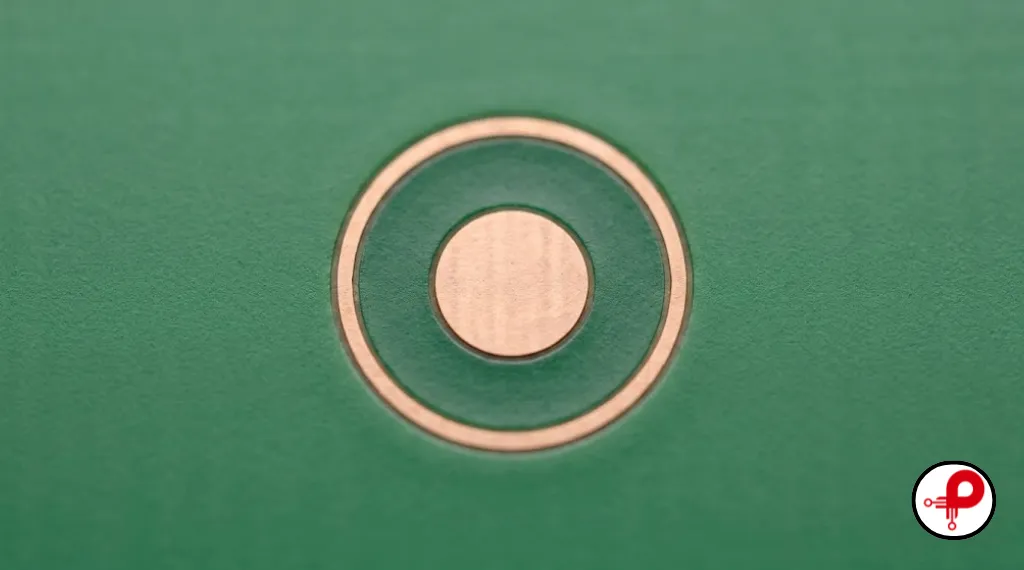

Geometry

The most common fiducial is a solid circular copper pad. A circle is easy for vision algorithms to locate because its center can be computed accurately even when edges are slightly blurred or lighting changes. Squares, diamonds and crosses are accepted by some machines, but circles are the safest default.

Keep the shape clean. Avoid thermal reliefs, spokes or connections to other copper. The fiducial is a feature to be seen, not part of the circuit. In most cases it should be an isolated copper dot with no net assigned.

Solder mask opening

The solder mask should be opened around the fiducial so the camera sees bare finish against a uniform background rather than copper under green mask. A clear opening gives the contrast the vision system relies on.

A common starting point is a mask opening roughly twice the pad diameter, which leaves a clear ring around the copper. If mask covers the edge of the pad, the visible shape changes and the machine may compute the wrong center. Reading up on PCB solder mask behavior helps you see how mask registration tolerance affects openings, so you can give the fiducial enough margin that normal mask shift does not clip it.

Surface finish and contrast

The finish matters because cameras see reflectance, not copper. The pad should look uniform and bright, or at least consistently different from the laminate and mask around it.

Flat finishes such as ENIG, immersion silver or immersion tin generally give consistent results. HASL can leave a domed, uneven surface that reflects light unpredictably, which some machines handle poorly on small fiducials. Bare copper with OSP can work, but oxidation or discoloration before assembly can reduce contrast. Ask your assembler which finishes have caused trouble on fiducials in the past.

Clearance and nearby features

The area around the fiducial should be free of competing features. Traces, vias, pads, silkscreen text and component outlines inside the clear zone can confuse the vision algorithm, which may mistake a nearby feature for part of the mark.

For this reason many designers define a keepout around each fiducial on the copper, mask and silkscreen layers. A keepout equal to or slightly larger than the mask opening is a reasonable approach. In a dense layout, this is where the circuit board design rules for fabrication and the rules for assembly have to be reconciled early, before routing locks everything in place.

Vias, silkscreen and board edges

Vias near a fiducial are a frequent cause of trouble because their annular rings or tenting can look like part of the mark. Keep them outside the clear zone. The PCB via design guide explains how via placement interacts with other board features, and fiducials are one more reason to keep a clean area.

Silkscreen should never overlap a fiducial or its mask opening. Ink on the mark ruins contrast and can shift the apparent center.

Near the board edge, the camera field of view, clamping hardware and conveyor rails can all interfere. Keep fiducials a comfortable distance from the edge so they stay visible and are not damaged by routing or V scoring. Typical practice uses several millimetres, but the exact figure should come from your assembler.

Summary of fiducial design points

PCB Fiducial Placement Rules

Placement decides how much correction a fiducial can provide, which makes it the most consequential part of PCB fiducial design. Even a perfectly drawn mark does little good if it sits in the wrong place, or if only two exist on a board that needs three. Good PCB fiducial placement starts with the assembler’s requirements and works inward from there.

How many global fiducials

Two global fiducials are enough to correct X, Y and rotation if they are far apart, typically on opposite corners. Three add information about scale and let the machine detect orientation. Many assemblers prefer three on each assembled side for that reason. Some accept two on small boards and require three on larger ones.

This is common industry practice, not a universal rule. Your assembler’s DFM document should state the minimum they need.

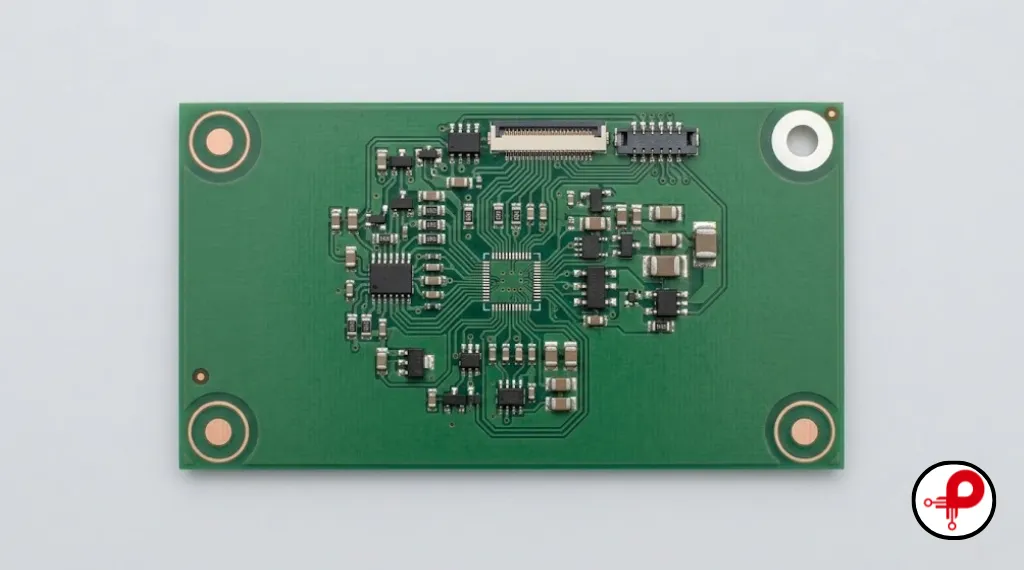

Asymmetric placement

If fiducials sit in a perfectly symmetric pattern, a board rotated by 180 degrees can look identical to the machine. That risks a flipped board being accepted as correct.

The usual fix is to offset one fiducial so the arrangement is asymmetric. With three marks, place two along one edge and the third at a different distance along the other, so the pattern identifies orientation. This also helps operators catch a board loaded the wrong way.

Corner placement and spacing

Spreading global fiducials as far apart as practical improves the quality of the rotation and scale estimate. A small angular error measured across a short baseline translates into a large uncertainty, while across the full board diagonal it is much better defined. That is why corners are the default location.

Place them close enough to the edge to cover the board, but far enough in that routing, scoring or clamps do not affect them. Where the edge region is occupied by connectors or mounting features, shift the marks inward while keeping them well spread.

Edge distance

Edge distance cuts both ways. Too close and the fiducial may be hidden under a clamp, damaged by depaneling or fall outside the camera’s reachable area. Too far in and you lose baseline length. Common practice sits at a few millimetres from the edge, but some machines need a larger margin, particularly when boards are held by edge clamps.

Machine vision field of view

Cameras have a limited field of view, and the search area for finding a fiducial is limited by the machine software. The board must arrive close enough to its nominal position for the mark to fall inside that window. Fiducials must also be reachable by the camera across the full travel of the head or gantry.

This is machine specific. Do not assume one layout suits every line. If you design for a particular assembler, ask for their camera and fiducial requirements.

Double sided assembly

If components are mounted on both sides, each side that goes through printing and placement needs its own set of fiducials. Marks on the top do not help the machine when it processes the bottom. Place each set using the same logic: asymmetry, wide spacing and clear zones.

One practical point is that the second pass runs after the first side has been through reflow, so the board has seen heat and may have moved slightly. Fresh fiducials on the second side let the machine correct for the actual board state instead of relying on the first pass.

Panelized boards

On panels, global fiducials usually sit on the rails, and each circuit may also carry its own. The machine first registers the panel, then each board if the program requires it. Panel placement should respect rail width, tooling hole positions and the depaneling method. The panel section below covers this in more detail.

What is fixed and what varies

For wider layout planning, the PCB layout best practices guide covers how to reserve space for these features before routing begins.

Global vs Local PCB Fiducial Design

Global and local fiducials do different jobs in any PCB fiducial design. One aligns the board and the other refines placement for a single area. Treating them as interchangeable leads to boards that are registered correctly overall but still show errors on the most demanding parts.

Why local fiducials can matter

Global alignment assumes the board behaves as a rigid, perfectly scaled copy of the CAD data. Real boards do not. Laminate shifts, copper layers move relative to each other and artwork scaling is imperfect. Two points on opposite sides of the board may register well while a footprint in the middle sits a few tens of micrometres away from where the global transform predicts.

For a typical 0402 passive, that error is absorbed by pad size and solder self alignment during reflow. For a BGA with small pads and tight pitch, or a QFN with narrow lands, the same offset consumes a meaningful fraction of the available tolerance. Local fiducials let the machine measure the area directly and correct for it.

The tradeoff is time and layout space. Each local fiducial adds a vision step, which slows placement slightly, and it needs its own clear area near a component that is probably already crowded. Use them where the tolerance budget justifies it, not on every part. Sensible PCB fiducial design treats local marks as a targeted tool.

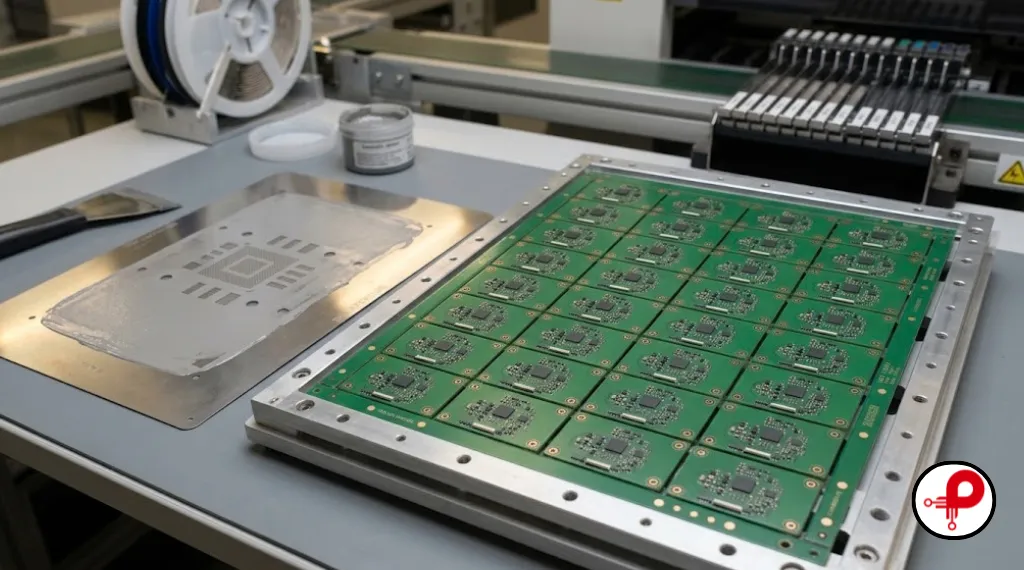

PCB Panel and Stencil Fiducial Design

Panelization and stencil printing add alignment layers on top of board level fiducials, so PCB fiducial design has to consider the panel and the stencil as well as the single board. Both are common places for mistakes because the information lives partly in the fabrication data and partly in the assembly tooling.

Panel rails and fiducials

When circuits are assembled as an array, the panel includes rails along at least two sides. These rails give the conveyor and machine clamps something to hold, and they carry panel level features such as fiducials and tooling holes.

Panel fiducials on the rails let the machine register the entire panel before touching individual boards. Rail width is set by assembler requirements and handling needs. Fiducials must fit inside the rail with enough clear space, and they should not sit too close to V score lines, breakaway tabs or routed slots, which can disturb the mark.

Where boards are packed tightly or the panel is large, per board fiducials are often needed as well. Panel marks correct the whole array, but individual circuits may vary slightly within it. If each circuit carries its own set, the machine can correct each board separately.

Tooling holes

Tooling holes are mechanical features used to locate the panel on pins or fixtures. They are separate from fiducials, although the two often appear together on a rail. Tooling holes provide a physical datum, while fiducials provide an optical one.

Keep them from interfering with each other. A fiducial too close to a tooling hole may fall inside a clamp or pin region. Hole size and position are normally dictated by the assembler’s fixtures, so confirm them before finalizing the panel drawing. The PCB manufacturing process article explains how routing and scoring affect rail features.

Stencil fiducials and solder paste printing

The solder paste printer must align stencil apertures with the board pads before printing. Many printers use cameras that look at fiducials on the board and matching marks on the stencil, then move the stencil or board until the two agree.

Stencil fiducials are usually produced by etching part way through the foil or by cutting small features, then filling them with a contrasting material so the camera sees them clearly. Their positions correspond to the board’s fiducials. If the stencil marks and board marks do not match, either in position or in how the printer expects to see them, alignment becomes slow or unreliable.

Requirements depend on the printer and the stencil supplier. Some systems look through the stencil at the board marks directly, without separate stencil fiducials. Others need specific marks on the foil. This is a coordination point: send your fiducial positions with the stencil order and confirm what the printer in use requires.

A misaligned print is expensive. Paste offset from the pad lowers solder volume on one side and raises bridging risk on the other. On fine pitch parts, a shift of even a fraction of the pad width can appear as opens or shorts after reflow.

Registration for inspection

AOI systems also use fiducials to align their images with the board model. If the marks are inconsistent, the inspection program may shift windows relative to the pads, causing false calls or missed defects. Consistent fiducial size and finish from board to board helps the inspection software behave predictably from lot to lot.

Boards intended for in circuit or flying probe testing should also be reviewed against PCB design for testability requirements, since test points, fiducials and component clearances often compete for the same space.

PCB Fiducial Design: Size, Clearance and Surface Finish

Dimensions are where most PCB fiducial design questions arise, and where the least universal answers exist. Published guidance from fabricators, EDA vendors and assemblers agrees on the principles but differs in the details. The Cadence resource on fiducials and AdvancedPCB’s fiducial article are both worth reading, and comparing them with your own assembler’s rules shows how much variation exists.

IPC publishes land pattern and design standards that touch on fiducials, so check the current revisions through the IPC standards catalog instead of relying on a number remembered from an older document. The values below are typical starting points, not requirements.

Pad diameter

A diameter near 1.0 mm is a widely used starting point for global fiducials, and many machines accept a range around it. Smaller marks fit tight areas but are harder to see and more sensitive to etching variation. Larger marks are easier to detect but take more room. Keep the size identical across every fiducial on the board, because mixed sizes can confuse the vision algorithm and lead to inconsistent centering.

Solder mask clearance

The mask opening has to be larger than the pad so mask registration error does not clip the mark. A ring of clear laminate or finish around the copper gives the camera a clean boundary. The exact margin depends on the fabricator’s mask registration capability. Ask what tolerance they work to, then size the opening so a worst case shift still leaves the pad fully exposed.

Keepout

The keepout is the zone where other copper, silkscreen and components are excluded. It protects the contrast around the fiducial. Many designers set it equal to the mask opening or somewhat larger. In tight layouts, the local fiducial keepout is where compromises happen, so decide early which features can move.

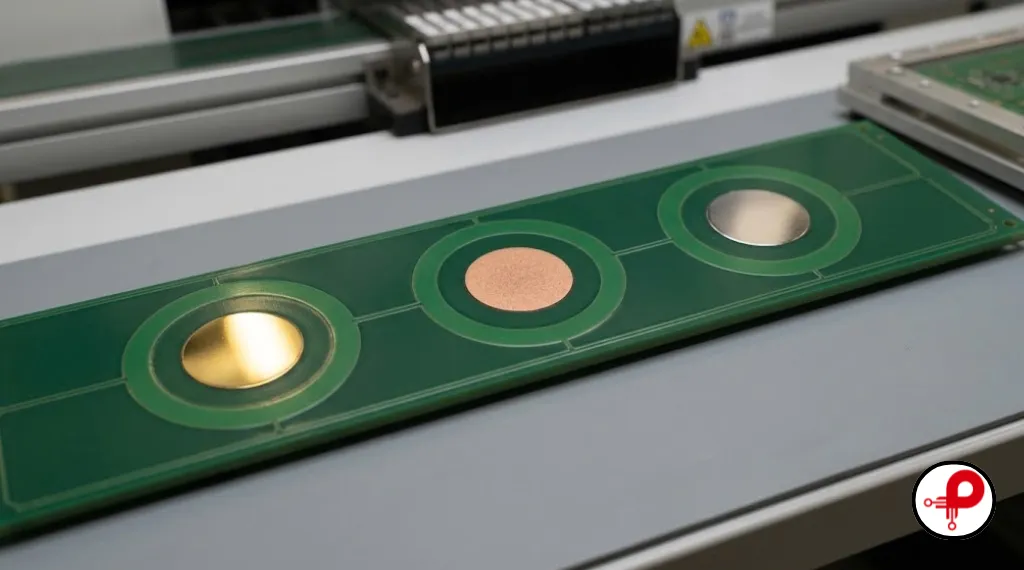

Surface finish and exposed copper

The finish determines how the pad looks to the camera. Flat finishes behave predictably. Uneven finishes introduce reflections that change with lighting angle. If you use HASL, discuss fiducial performance with your assembler. If you use OSP, confirm shelf life and handling, since oxidation can change the appearance of exposed copper.

Flatness and contrast

Flatness matters because cameras use controlled lighting, and a domed surface scatters light. Contrast matters because the algorithm needs to separate the mark from the background. A bright, flat pad on a dark or matte surface gives the best result. Avoid anything that makes the background shiny or the pad dull.

Confirming values

Before release, check the numbers with four parties: the PCB fabricator for mask and etching capability, the assembler for machine requirements, the stencil supplier for stencil fiducial needs, and the machine documentation if you have access to it. A fiducial that is perfect for one line may need adjustment for another.

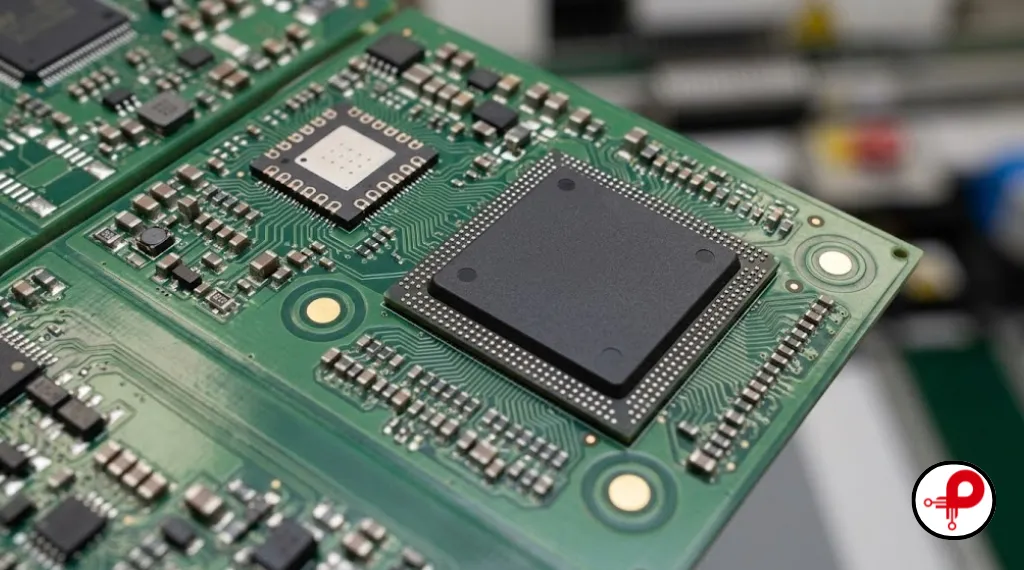

PCB Fiducial Design for BGA, QFN and Fine Pitch Components

For PCB fiducial design on dense boards, the question is not simply whether a part is fine pitch. It is whether the placement tolerance budget leaves room for the residual error that global alignment cannot remove.

Pitch, tolerance and local alignment

Every footprint has a tolerance window. For a BGA, that window depends on ball size, pad size, mask definition and how much self centering the solder provides during reflow. For a QFN, it depends on land width, pad extension and the thermal pad. As pitch shrinks, the land shrinks with it, and the allowable offset gets smaller.

Placement error comes from several sources: machine accuracy, nozzle pickup offset, board registration error and local distortion of the board. Global fiducials remove much of the registration error but not the local part. If the sum of the remaining errors approaches a significant fraction of the window, local fiducials are worth adding.

There is no honest single pitch threshold for this. Some assemblers recommend local marks below a certain pitch, but those numbers are tied to their equipment and process, and they differ. Ask your assembler what they do for your specific component and board size.

Fine pitch connectors and RF modules

Fine pitch connectors, board to board connectors and RF modules often have strict alignment needs because of mating tolerance or RF performance, not only solder joint quality. Placement errors can cause connector stress or detuned RF behavior. Local marks near such parts add margin.

When RF performance is a factor, make sure fiducial copper and keepouts do not interfere with ground planes or tuning areas. Apply the same thinking you would use for EMI and EMC PCB design whenever marks land near sensitive sections.

Dense component regions

In a dense area with many small parts, a pair of local fiducials can serve a group of components rather than a single one. This saves space and machine time. The caution is distance: the farther a component is from the nearest local marks, the less benefit they give, since distortion varies across the board.

Practical approach

Match the tolerance of the part to the quality of the board. Check the assembler’s recommendation for each part type, then record the decision on the fabrication and assembly drawings so it is clear which components rely on local alignment. This is where PCB fiducial design moves from a generic rule to a decision about your specific board.

Common PCB Fiducial Design Mistakes

Most PCB fiducial design problems are not exotic. They repeat across projects and are easy to prevent once you know where to look. The common PCB design mistakes article covers wider layout errors, and the table below focuses on fiducials.

Mask covering the fiducial

This is often a layer or library problem. A fiducial footprint may define copper but a mask opening that is too small, or none at all. The fabricator then applies mask over the dot. Verify the opening in the Gerber files, not just in the CAD view.

Poor contrast

Contrast problems are subtle because the mark may look fine to the eye. The machine sees under its own lighting, which behaves differently. Ask the assembler to inspect a sample board or first article when you try a new finish.

Symmetry and orientation

A symmetric pattern can let a rotated board pass the alignment check. The error appears only when placement fails or, worse, when parts go on in the wrong orientation. Offsetting one mark costs nothing and prevents the problem.

Hidden or blocked fiducials

Fiducials must remain visible when the machine needs them. A component placed over a mark on a later pass, or a connector body that blocks the camera view, turns the mark into dead copper. Review the 3D model and courtyards for each assembly pass.

CAD and output errors

Fiducial footprints often come from libraries with different assumptions. A footprint with a rule based mask expansion may behave differently from one with an explicit opening. Always inspect the output files and compare them with the assembler’s checklist. A clear electronic product design workflow helps, because library and output checks then happen at defined stages instead of the night before release.

Not asking the assembler

The simplest mistake is to design in isolation. Assemblers publish capability documents for good reasons. Reading them before layout takes minutes, while correcting a finished board takes days.

PCB Fiducial Design Checklist

Use this PCB fiducial design checklist before releasing fabrication and assembly data. It is organized so you can check each item against the CAD database, the Gerbers and the assembler’s requirements. Pairing it with a review of the DFM and DFA guidelines makes it easier to catch problems together.

Working through the list

Start with the assembler’s documentation, not after layout is done. Decide the global fiducial pattern first, then place local marks as you finalize component positions. Run clearance checks in your EDA tool, export the data and inspect the output files directly. If you build many products, store a verified fiducial footprint in your library so every project begins from a known good definition.

For an early prototype you can relax some items, but keep global fiducials and clear mask openings. Those two give most of the benefit at the least cost. If you use open source or desktop pick and place equipment, the OpenPnP fiducials documentation explains how a vision driven machine uses these marks and is useful for understanding the logic behind the rules.

Conclusion

PCB fiducial design is a small task with a large influence on assembly quality. Global marks align the board, local marks refine critical areas, and panel and stencil marks keep printing and placement consistent. Clear geometry, good contrast, a clean keepout and asymmetric placement solve most problems. Numbers vary between assemblers, so treat any size or distance as a starting point and confirm it with the people who will build your board. Careful PCB fiducial design, a short conversation before layout and a check of the output files are usually enough to avoid expensive surprises.
